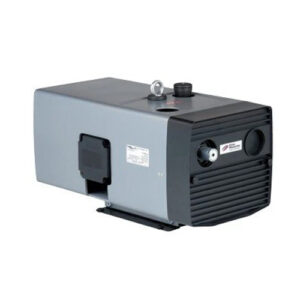

Elmo Rietschle VTN 41
The Elmo Rietschle VTN 41 is a dry running oil free rotary vane vacuum pump from the Pico series of pumps.
It is rated for continuous duty.
As it utilises self-lubricating carbon vanes, it requires minimal servicing and no oil.
| Model | M3/Hr 50 / 60Hz | Max Vacuum mbar Abs 50 / 60 Hz |
Motor Size Kw 50 / 60 Hz |
|
| 3PH | 1PH | |||
| VTN 41 | 42 / 50.4 | 150 | 1.5/1.8 | |
Elmo Rietschle VTN 41 Vacuum Pump
The Elmo Rietschle VTN 41 pumps are equipped with:
• Intake filter
• Vacuum regulating valve
• Blow off valve
Main application fields:
Packaging, printing, vacuum fixing, pick and place, evacuation and extraction, medical, laboratory and others.
Accessories
An external pre-filter canister is recommend to protect the pump.
Maintenance and servicing
At VacAir we are experts in servicing and maintaining all Rietschle pumps. Visit our pump service page for further information.
We are a specialists in vanes, pump filters and spare parts all at the lowest possible prices.
Contact us if you need a parts diagram for your Rietschle VTN41
Refurbished Elmo Rietschle VTN 41
Check our refurbished pump page or call us to check stock as it changes daily.
Alternative Pump
Our sister company, Vacuum Pumps UK, can often offer a more cost effective alternative.
