Busch R5 RA 0063F Vacuum Pump Sales, Service & Rapid Replacement UK
Urgent Vacuum Pump Failure?
VacAir Superstore supply new, refurbished and replacement Busch R5 RA 0063F vacuum pumps with rapid UK-wide support for breakdown situations, production stoppages and emergency replacement requirements.
✔ New Busch pumps
✔ Cost Effective Alternative Pumps
✔ Refurbished replacement pumps
✔ UK-wide repair support
✔ Spare Parts, Service kits, filters & separators
✔ Engineer technical advice
✔ Workshop repairs and overhauls
Common Busch R5 RA 0063F Problems
- Exhaust smoke
- separator blockage / saturation
- reduced vacuum performance
- contaminated oil
- overheating from poor ventilation
- noisy operation
- contaminated oil
- poor maintenance schedule
In many cases faults can be resolved through servicing or overhaul, however severe internal wear or catastrophic failure may require pump replacement.
VacAir engineers can help diagnose the most cost-effective solution.

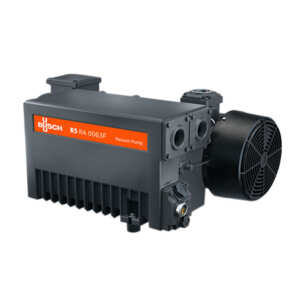

Busch R5 RA 0063F Technical specifications
The R5 RA 0063F is an oil lubricated rotary vane vacuum pump with a flow of 63 m3/h and a Max. vacuum of 0.1 mbar Abs.
Available with a 2.0 kw motor @ 50Hz. It is rated for continuous duty.
As it is oil lubricated it is able to generate a fine vacuum and is suitable for applications that require a higher vacuum.
| Model | M3/H 50Hz / 60Hz |
Max Vacuum mbar Abs 50Hz / 60Hz |
Motor Size kW 50Hz/60Hz |
| Busch R5 RA 0063F | 63 / 76 | 0.1 / 0.1 | 2.0 / 2.4 |
The Busch R5 RA 0063F pumps are equipped with:
• Intake filter
• Integrated float valve
• None return valve
• Oil mist separator element/s
Typical Applications for the Busch R5 RA 0063F
The Busch R5 RA 0063F is commonly used across a wide range of industrial vacuum applications including:
- tray sealing machines
- thermoforming equipment
- compact packaging systems
- vacuum clamping systems
- printing machinery
- laboratory systems
- plastics processing machinery
- vacuum handling systems
- food packaging equipment
This smaller R5 model is particularly suited to single-machine installations and compact industrial systems requiring reliable continuous vacuum generation.
Should You Repair or Replace a Busch R5 RA 0063F?
Many Busch R5 vacuum pumps can be economically repaired if faults are identified early.
However, replacement may be the more cost-effective solution if the pump has:
• Severe internal scoring
• Damaged rotor components
• Bearing Failure
• Heavy wear
• Mechanical pick up
VacAir can advise whether a service is sufficient, a workshop overhaul is viable or a replacement pump would minimise downtime and reduce long-term operating costs.
We can also supply refurbished replacement pumps subject to availability.
Alternative Pump
Our sister company, Vacuum Pumps UK, can often offer a more cost effective alternative such as the DVP LC.60

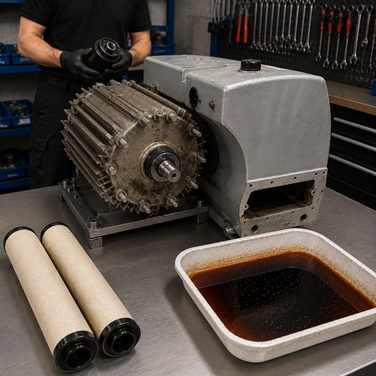

Busch R5 RA 0063F Servicing & Maintenance
Routine servicing is essential for maintaining vacuum performance and extending pump life.

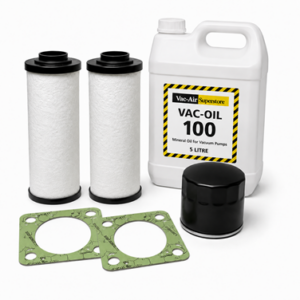

• Typical service items include:
• Vacuum pump oil
• Oil filters
• Exhaust separators
• Inlet filters
• Seals and gaskets
Poor maintenance can lead to:
• Reduced vacuum performance
• Overheating
• Smoking exhaust
• Increased oil consumption
• Internal wear
• Catastrophic failure

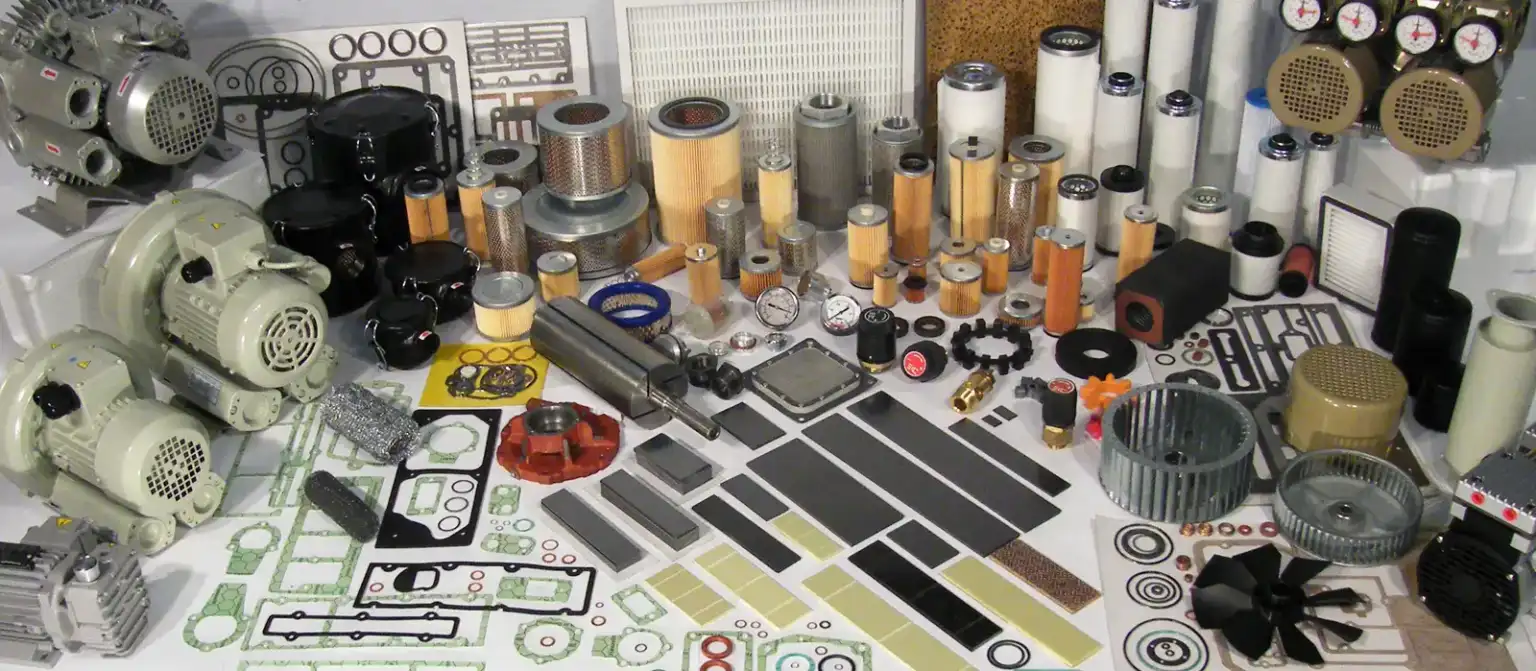

VacAir Superstore can supply Busch service kits, separators, filters and genuine or alternative spare parts for the R5 RA series.
Looking for an Alternative to the Busch R5 RA 0063F?
DVP oil lubricated rotary vane vacuum pumps provide a cost-effective alternative to the Busch R5 RA 0063F.
DVP alternatives may be suitable where:
- lower capital cost is preferred
- rapid availability is important
- the system is being upgraded
- or an exact Busch replacement is not essential.
As Master UK & Ireland Agents for DVP Technology, VacAir can advise on suitable alternatives for many industrial vacuum applications.
Need an Urgent Replacement Busch Vacuum Pump?
If your vacuum pump has failed and production has stopped, contact VacAir Superstore for rapid assistance.
We can help with:
emergency replacement pumps
• Refurbished pumps
• Workshop overhaul
• Service kits and consumables
• Separator and filter supply
• Technical support
• UK-wide vacuum pump support
Busch R5 RA 0063F Vacuum Pump FAQs
What type of vacuum pump is the Busch R5 RA 0063F?
The Busch R5 RA 0063F is an oil lubricated rotary vane vacuum pump commonly used for industrial vacuum applications including packaging machinery, food processing, plastics, vacuum handling and compact production systems.
What is the pumping speed of the Busch R5 RA 0063F?
The Busch R5 RA 0063F has a nominal pumping speed of approximately 63 m³/h at 50Hz. It is commonly selected for smaller industrial systems requiring reliable continuous-duty vacuum performance.
What vacuum level can the Busch R5 RA 0063F achieve?
The Busch R5 RA 0063F can achieve an ultimate pressure of approximately 0.1 mbar absolute, depending on configuration, condition, installation and maintenance.
Why is my Busch R5 RA 0063F smoking from the exhaust?
Exhaust smoke can be caused by worn oil separators, contaminated oil, overfilling, blocked filters, process contamination or internal wear. If the pump is smoking heavily, contact VacAir Superstore before continuing to run it.
Can a Busch R5 RA 0063F be repaired?
Yes. Many Busch R5 RA 0063F pumps can be serviced, repaired or overhauled depending on their internal condition, wear level and parts availability.
Do you supply replacement Busch R5 RA 0063F vacuum pumps?
Yes. VacAir Superstore can help with new, refurbished and replacement Busch R5 RA 0063F vacuum pumps, subject to stock availability. Contact us for urgent availability checks.
Is there a DVP alternative to the Busch R5 RA 0063F?
Yes. A DVP LC.60 oil lubricated rotary vane vacuum pump provides a suitable and cost-effective alternative to the Busch R5 RA 0063F. As Master UK & Ireland Agents for DVP Technology, VacAir can supply suitable options.
Trust VacAir Superstore for all your vacuum pump needs.
Contact us today to learn how we can help you save money and keep your operations running smoothly.
