Busch R5 RA 0502 B Vacuum Pump Sales, Service & Rapid Replacement UK

Urgent Busch R5 RA 0502 B Vacuum Pump Failure?

The Busch R5 RA 0502 B is a high-capacity oil lubricated rotary vane vacuum pump commonly found in demanding industrial environments where reliable vacuum generation is essential to maintaining production.

We can advise whether your RA 0502 B is suitable for servicing, overhaul, repair or replacement, helping minimise downtime and restore production as quickly as possible.

We supply new, refurbished and replacement Busch R5 RA 0502 B vacuum pumps together with repair services, service kits, oil separators, vacuum pump oil and technical support.

✔ New Busch pumps

✔ Refurbished replacement pumps

✔ UK-wide repair support

✔ Service kits, filters and separators

✔ Engineer technical advice

✔ Fast response for urgent enquiries

If your pump has failed unexpectedly, started producing excessive exhaust smoke, developed a fault or is no longer achieving the required vacuum level, VacAir Superstore can help with replacement pumps, repairs, spare parts and technical support.

Common Busch R5 RA 0502 B Problems

Many Busch R5 RA 0502 B pumps have provided years of reliable service and continue to operate in demanding production environments. As pumps age, routine maintenance becomes increasingly important to maintaining performance and reliability.

Where servicing intervals have been extended or maintenance has been neglected, these issues can eventually lead to increased wear, reduced efficiency and expensive mechanical failures.

Common issues include :

Production line vacuum failure
Reduced vacuum performance
Excessive smoking from the exhaust
Saturated exhaust separators
Contaminated vacuum pump oil
Overheating
Oil leaks
Noisy operation
Poor maintenance history

Large oil lubricated rotary vane pumps such as the RA 0502 B are often installed on production-critical equipment and central vacuum systems. Missed servicing intervals, contaminated oil, blocked filters or worn separators can lead to overheating, smoke, poor vacuum performance and accelerated internal wear.

Contact for new pump quote

Busch R5 RA 0502 B Technical Specifications

The Busch R5 RA 0502 B, with a nominal pumping speed of 500 m³/h and a maximum vacuum of 0.1mbar absolute at 50Hz, is a large oil lubricated rotary vane vacuum pump designed for continuous-duty industrial applications where reliable vacuum performance and production uptime are important.

Model	M³/H 50Hz / 60Hz	Max Vacuum mbar Abs 50Hz / 60Hz	Motor Size kW 50Hz / 60Hz
Busch R5 RA 0502 B	500 / 600	0.1 / 0.1	11.0 / 15.0

Whilst designed for continuous operation oil lubricated pumps should not be left to run open to atmosphere otherwise the oil separators will quickly become saturated.

The Busch R5 RA 0502 B pumps are commonly equipped with:

• Intake filter
• Integrated float valve
• Non-return valve
• Oil mist separator element/s

Accessories include:

Gas ballast valve and inline filter.

Typical Applications for the Busch R5 RA 0502 B

The Busch R5 RA 0502 B is widely used across a range of industrial vacuum applications including:

Food packaging plant
Central vacuum systems
Tray sealing systems
Thermoforming packaging systems
Plastics processing equipment
Vacuum forming equipment
Print finishing and paper handling machinery
Vacuum conveying systems
Vacuum lifting and clamping applications
Industrial automation systems

The Busch R5 RA 0502 B is commonly installed where larger vacuum flow rates are required and where dependable operation is critical to production efficiency.

Should You Repair or Replace a Busch R5 RA 0502 B?

As an older high-capacity vacuum pump, the Busch R5 RA 0502 B is often a strong candidate for repair or overhaul, particularly where the cost of replacement equipment would be significant.

Many pumps can be restored through replacement of bearings, seals, oil separators, filters and other wear components. Where economically viable, repairs to rotors, end shields and cylinders may also help reduce overall repair costs.

VacAir engineers can assess your pump and advise whether repair, overhaul or replacement provides the most practical and cost-effective solution.

A service or repair may be suitable where the pump has:

• reduced vacuum caused by blocked filters
• worn or saturated exhaust separators
• contaminated oil
• oil leaks
• serviceable wear components
• no serious internal damage
• no severe scoring or rotor damage

Replacement may be more cost-effective where the pump has:

• severe internal scoring
• bearing failure
• rotor or cylinder damage
• catastrophic vane failure
• excessive oil contamination
• repeated breakdown history
• very high running hours
• downtime requiring a fast solution

Alternative Pump or System
Our sister company, Vacuum Pumps UK, can advise on cost-effective alternatives. Depending on the duty, this may include a DVP oil lubricated rotary vane pump, a refurbished pump or a multi-pump vacuum system.

Busch R5 RA 0502 B Servicing & Maintenance

Routine maintenance plays a vital role in protecting the performance and reliability of the Busch R5 RA 0502 B.

Regular servicing can also help identify potential issues before they develop into major failures, reducing downtime and helping maximise the service life of the pump.

Typical service items include:

• vacuum pump oil change
• oil filter replacement
• exhaust separators replaced
• inlet filters
• gasket kit and seals
• vanes where required
• general inspection and testing

Poor maintenance can lead to:

• reduced vacuum performance
• overheating
• exhaust smoke
• blocked oil scavenger line
• blocked filters
• increased running temperature
• internal pump wear
• sudden breakdowns
• unnecessary machinery downtime

VacAir Superstore can supply service parts, separators, filters, gas ballast valves and oil for Busch R5 vacuum pumps. For more serious faults, our engineers can advise on workshop inspection, overhaul or replacement.

Considering an alternative to the Busch R5 RA 0502 B?

In many applications a DVP oil lubricated rotary vane vacuum pump or a multi-pump central vacuum system may provide a suitable alternative, depending on the required vacuum level, flow rate and operating conditions.

Where production resilience is important, multi-pump systems can provide built-in redundancy, allowing one pump to be serviced while production continues.

A DVP alternative may be suitable where:

• faster availability is required
• budget is important
• the pump is part of a wider machine upgrade
• an exact Busch replacement is not essential
• the application can accept an equivalent vacuum pump solution
• you want advice from a UK DVP specialist

As Master UK & Ireland Agents for DVP Technology, VacAir can advise whether a DVP alternative or multi-pump vacuum solution is suitable for your process, machine or vacuum system.

Need an Urgent Replacement Busch Vacuum Pump?

If your Busch R5 RA 0502 B vacuum pump has failed and production has stopped, contact VacAir Superstore for urgent assistance.

We can help with:

• New Busch vacuum pumps
• DVP alternative solutions
• Refurbished replacement pumps
• Pump repairs and overhaul
• Service kits and consumables
• Separators, filters and oil
• Technical support
• UK-wide vacuum pump support

Parts, Service & Maintenance

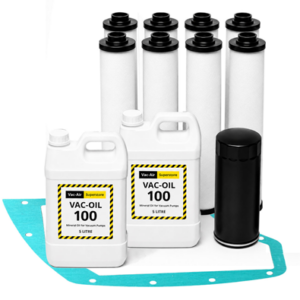

R5 RA 0502 B Service Kit

Service kit for routine maintenance of the Busch R5 RA 0502 B vacuum pump, helping replace key service items together.

R5 RA 0502 B Oil Separator

Oil separator for the Busch R5 RA 0502 B vacuum pump, helping reduce oil misting and maintain reliable pump performance.

Busch Vacuum Pump Oil

Vacuum pump oil suitable for Busch R5 oil-lubricated rotary vane pumps, available for oil changes and planned maintenance.

R5 RA 0502 B Spare Parts

Common spare parts for the Busch R5 RA 0502 B vacuum pump, including filters, seals, gaskets and service components.

Busch Pump Repair Service

Service, repair and overhaul support for Busch vacuum pumps, helping reduce downtime and extend pump service life.

Busch R5 RA 0502 B Vacuum Pump FAQs

What type of vacuum pump is the Busch R5 RA 0502 B?

The Busch R5 RA 0502 B is an oil lubricated rotary vane vacuum pump designed for continuous industrial duty. It has been widely used in packaging, thermoforming, plastics processing, printing and industrial vacuum systems.

What is the pumping speed of the Busch R5 RA 0502 B?

The Busch R5 RA 0502 B has a nominal pumping speed of approximately 500 m³/h at 50Hz and 600 m³/h at 60Hz.

Is the Busch R5 RA 0502 B still supported?

Yes. Although the Busch R5 RA 0502 B is an older model, many pumps remain in service and VacAir Superstore continues to supply service kits, spare parts, overhaul components and technical support.

What are common signs that a Busch R5 RA 0502 B requires servicing?

Common symptoms include reduced vacuum performance, increased oil consumption, excessive exhaust smoke, contaminated oil, noisy operation, overheating and longer evacuation times.

Can a Busch R5 RA 0502 B be repaired or overhauled?

Yes. Many Busch R5 RA 0502 B pumps can be repaired or completely overhauled. Repairs may include bearings, seals, vanes, oil separators and restoration of worn components where economically viable.

Do you supply service kits and spare parts for the Busch R5 RA 0502 B?

Yes. VacAir Superstore supplies service kits, oil separators, filters, vacuum pump oil, overhaul components and spare parts for Busch R5 vacuum pumps.

Can the Busch R5 RA 0502 B be replaced with a newer vacuum pump?

Yes. Depending on the application, the RA 0502 B may be replaced by a newer Busch model, a refurbished vacuum pump or an alternative vacuum solution. Our engineers can advise on suitable replacement options.

Do you offer replacement Busch R5 RA 0502 B vacuum pumps?

Yes. We can supply new, refurbished and replacement vacuum pumps together with technical advice to help identify the most suitable solution for your application.
