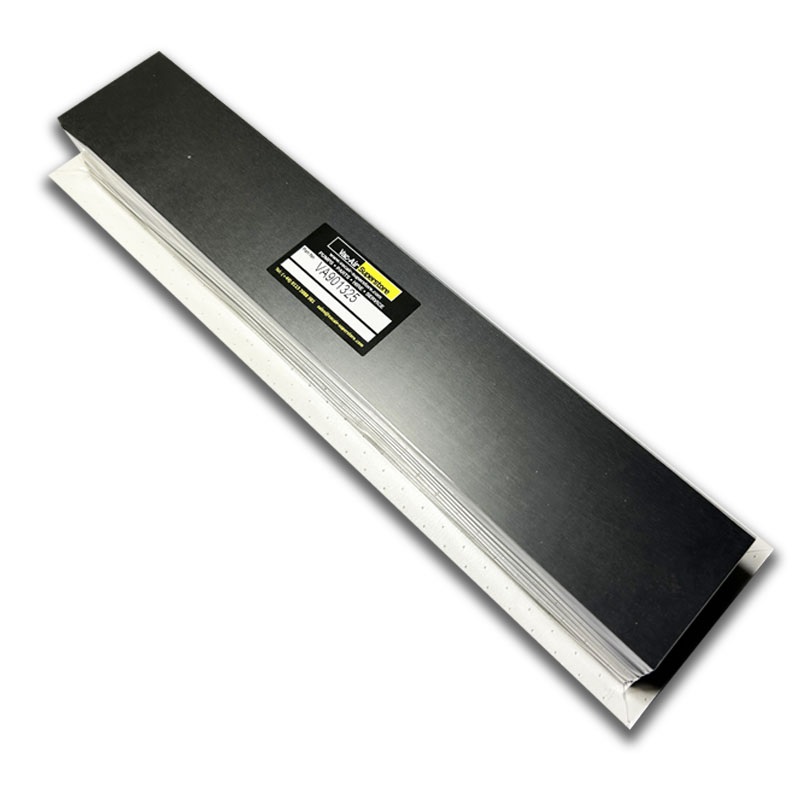

Becker WN124-250 Vanes 90132500005

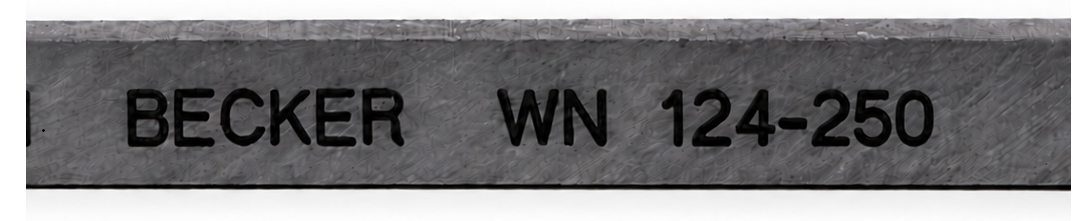

IDENTIFYING BECKER VANE WN 124-250

BECKER PUMPS USING WN 124-250 VANES

WN 124-250 carbon vanes are used across the following Becker DTLF, DXLF, VTLF and VXLF pump models. Select the individual model below to view its dedicated vane page.

REPLACING BECKER WN 124-250 CARBON VANES

VacAir Superstore stocks and supplies Becker WN 124-250 replacement carbon vanes for selected larger Becker DTLF, DXLF, VTLF and VXLF dry-running rotary vane pumps. Identified by Becker OEM reference 90132500005 and VacAir reference VA901325, these vanes are used in industrial equipment where dependable vacuum or pressure generation is important to the production process.

Each new WN 124-250 vane measures 355 × 64 × 5.3 mm. The 64 mm dimension is the new vane height, which gradually reduces as the carbon wears during normal operation. The specified minimum wear height is 41 mm. Monitoring this measurement is an important part of preventative pump maintenance, particularly where the pump operates for extended periods or is essential to production.

This vane code covers several Becker model families and generations, including the DTLF2.360, VTLF2.360, DXLF2.200, DXLF2.250, DXLF200, DXLF250, DXLF360, VXLF2.200, VXLF2.250, VXLF200 and VXLF250. Although these models share the WN 124-250 vane identification in the supplied compatibility information, the complete pump model and serial details should be checked before ordering. This is particularly useful when older equipment has been serviced previously or the original vane marking has become difficult to read.

The 355 mm length makes WN 124-250 a substantial carbon vane. During servicing, engineers should inspect each vane along its full length, rather than relying on a single height measurement. Cracks, chipped corners, unusual edge wear or a difference in height from one end to the other can indicate operating conditions that need attention. A replacement set should not simply be fitted without investigating significant damage to the vanes being removed.

When the vane height reaches 41 mm, the complete set should be replaced in accordance with the applicable pump servicing instructions. Replacing all vanes together helps avoid mixing new components with partially worn ones. It also provides an opportunity to inspect the rotor, cylinder, end plates, bearings and associated filtration before the machine returns to operation.

For businesses using Becker dry-running pumps in continuous or demanding applications, planned vane replacement is generally preferable to waiting for a breakdown. Excessive wear may contribute to deteriorating pump performance, abnormal running noise or internal damage. VacAir can help identify the correct WN 124-250 / 90132500005 replacement carbon vanes and advise when the condition of the pump warrants further engineering inspection.

Inspection checklist for Becker WN 124-250 vanes:

FITTING WN 124-250 REPLACEMENT VANES Before opening the pump, isolate it safely and follow the manufacturer’s servicing instructions. Remove the existing carbon vanes carefully, taking particular care with their length and the condition of the rotor slots. Inspect the removed vanes for fractures, uneven wear or signs of mechanical contact. The rotor slots should be clean and free from deposits that might prevent the new vanes moving correctly. Check each replacement vane individually to ensure it slides smoothly within its slot without binding. Do not force a vane into position or attempt to correct a damaged slot by fitting the replacement under pressure. The higher edge of the vane is the leading edge, with the chamfer following behind. The illustration shows the general orientation principle. Always verify the correct fitting direction and pump rotation against the relevant Becker maintenance documentation for the exact model being serviced. If the pump has suffered a broken vane, significant scoring or unusually rapid carbon wear, replacing the vanes alone may not resolve the underlying problem. VacAir’s engineers can assist with technical advice, inspection and professional pump servicing when further attention is required.

UK, EUROPEAN & WORLDWIDE VANE SUPPLY

WHY BUY REPLACEMENT BECKER VANES FROM VACAIR?

Replacement carbon vane specialists since 1996. VacAir Superstore has spent decades supplying vacuum pump vanes, replacement parts and technical support to industrial users. Our business is built around helping customers obtain the right components for their equipment, not simply listing part numbers in a catalogue. That distinction becomes particularly valuable when servicing older Becker pumps or identifying components used across several generations of machinery.

Specialist knowledge of the Becker DTLF, DXLF, VTLF and VXLF ranges. The WN 124-250 vane is associated with numerous Becker pump models, including DTLF2.360, DXLF2.200, DXLF2.250, DXLF200, DXLF250, DXLF360, VTLF2.360 and selected VXLF models. Our team understands the importance of confirming the precise model designation, vane code and dimensions before supply. We can help maintenance departments and resellers identify 90132500005 replacement carbon vanes without relying on guesswork.

More than 40 years of combined former Becker UK agent experience. Our senior team has extensive practical experience with Becker vacuum pumps, their servicing requirements and common maintenance problems. Customers can discuss vane identification, unusual wear and pump condition with people who understand dry-running rotary vane equipment, rather than a general parts distributor with limited technical knowledge.

UK vane stock, competitive pricing and our Price Promise. We maintain replacement vane stock in the UK and work to supply the correct components at competitive prices. Our Customer Promises & Terms set out the conditions of our Price Promise for qualifying comparable replacement carbon vanes from UK suppliers. We believe customers should receive clear information, fair prices and dependable technical support.

Externally audited ISO 9001:2015 quality management. VacAir operates an ISO 9001:2015 certified quality management system, reflecting our commitment to consistent business processes, customer satisfaction and service quality. Our reputation has been developed over decades of supplying vacuum pump products and supporting the people who maintain them.

OEM-trained engineers and professional pump repairs. Our experienced workshop team can assist when a Becker pump needs more than a routine vane replacement. From examining a damaged rotor or cylinder to investigating bearing wear, abnormal noise or repeated vane failures, our Becker pump repair and refurbishment service provides an additional level of support that a generic vane seller cannot offer.

Becker spare parts and servicing components from one supplier. Alongside WN 124-250 replacement carbon vanes, VacAir supplies Becker spare parts, filters, OEM components and associated vacuum pump equipment. This makes it easier to source the additional items needed during planned maintenance or a more extensive pump overhaul.

Worldwide supply with a genuine understanding of urgency. Whether your WN 124-250 vanes are required for scheduled servicing or to restart a stopped production line, we understand the importance of prompt and accurate supply. With UK stock, express delivery options and knowledgeable staff available to discuss the application, VacAir combines specialist products with the practical service expected from an established vacuum pump supplier.

FREQUENTLY ASKED QUESTIONS
