Becker WN 124-253 Vanes 90140200004, 90140200007

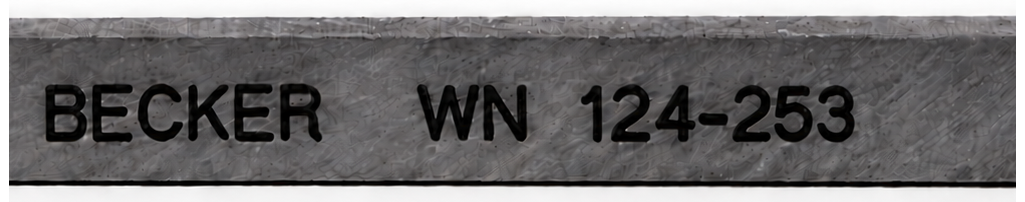

IDENTIFYING BECKER WN 124-253 CARBON VANES

BECKER PUMPS USING WN 124-253 VANES

WN 124-253 carbon vanes are used in the Becker DVX3.100, KDX3.100 and KVX3.100. The vane dimensions are common to all three models, but the number of vanes fitted to the pump differs.

REPLACING BECKER WN 124-253 CARBON VANES

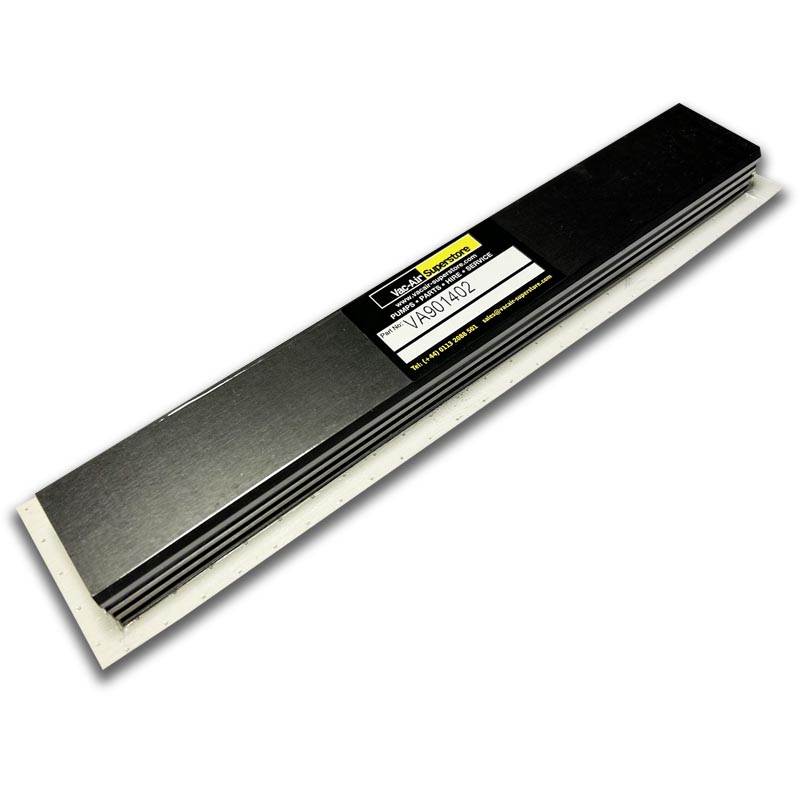

VacAir Superstore stocks and supplies Becker WN 124-253 replacement carbon vanes for the Becker DVX3.100, KDX3.100 and KVX3.100 dry-running rotary vane pumps. Our replacement reference is VA901402, corresponding to Becker OEM set numbers 90140200004 and 90140200007. Both set numbers identify the same vane specification, with the difference being the number of carbon vanes supplied for the particular pump.

A new WN 124-253 carbon vane measures 250 × 37 × 4 mm. The original vane height is 37 mm and the specified minimum wear height is 26 mm. As the pump operates, the carbon vanes move within the rotor slots and gradually wear against the internal running surface. This is an expected characteristic of a dry-running rotary vane pump, making regular inspection and replacement essential maintenance tasks.

Although all three Becker models use WN 124-253 vanes, the DVX3.100 requires seven vanes, identified by Becker part number 90140200007. The KDX3.100 and KVX3.100 each require four vanes, identified by 90140200004. The correct quantity should be established before servicing begins, particularly where the pump is being taken out of production for a planned maintenance window.

Vane wear should be assessed by measuring the height of every carbon vane in the pump and comparing the results with the 26 mm minimum height. A vane that has reached this limit should not be left in service. Replacing the complete set helps maintain consistency across the rotor and avoids combining newly fitted vanes with components that have already experienced significant wear.

Inspection should not stop at measuring vane height. A chipped or fractured carbon vane, pronounced differences in wear between individual vanes or evidence of internal scoring can indicate that another part of the pump requires attention. Inlet restrictions, inadequate cooling, contamination and mechanical wear should be considered when assessing a pump that has experienced abnormal vane deterioration.

For industrial users, the cost of unexpected downtime can be considerably greater than the cost of routine vane replacement. Keeping the appropriate WN 124-253 / WN124-253 replacement set available can help maintenance engineers complete planned servicing promptly. VacAir can assist with identification of the correct four-vane or seven-vane set, together with related Becker maintenance parts and technical guidance.

Recommended inspection checks for Becker WN 124-253 vanes:

FITTING WN 124-253 REPLACEMENT VANES Before carrying out maintenance, safely isolate the Becker pump and follow the manufacturer’s servicing instructions. Confirm whether the machine is a DVX3.100, KDX3.100 or KVX3.100 and ensure that the correct replacement quantity is available. The DVX3.100 requires seven carbon vanes, while the KDX3.100 and KVX3.100 require four. Once the pump has been opened in accordance with the applicable procedure, remove the existing vanes and inspect their condition. Look for cracks, broken edges and irregular wear. Examine the rotor slots, cylinder and other accessible internal components for deposits, scoring or damage that could interfere with the operation of the replacement vanes. Clean and inspect the rotor slots using the appropriate maintenance method. Each replacement vane must be able to slide smoothly without binding. A sticking vane can indicate contamination, slot damage or another mechanical problem, and should not simply be forced into place. The higher edge of the carbon vane is the leading edge, and the chamfer follows behind. The accompanying illustration explains this general fitting principle. Always verify the correct orientation against the manufacturer’s instructions for the specific Becker model before completing the installation. Fit the complete replacement set and reassemble the pump in accordance with the service procedure. After commissioning, check that the pump operates correctly. If the previous vanes suffered unusually rapid wear or mechanical damage, investigate the cause rather than assuming that replacement alone will resolve the underlying fault.

UK, EUROPEAN & WORLDWIDE VANE SUPPLY

WHY BUY REPLACEMENT BECKER VANES FROM VACAIR?

Specialists in replacement carbon vanes since 1996. VacAir Superstore has built its business around supplying vacuum pump vanes, replacement parts and specialist support to industrial customers. Our experience extends far beyond recognising a part number. We understand that the correct replacement vane must match the pump, that the required quantity matters and that reliable availability can be critical when production equipment needs attention.

Practical identification of Becker WN 124-253 vane sets. The distinction between 90140200004 and 90140200007 is straightforward but important. Both contain WN 124-253 carbon vanes, yet the four-vane set is intended for the KDX3.100 and KVX3.100, while the seven-vane set is for the DVX3.100. By understanding these applications, we can help customers avoid ordering an insufficient quantity or purchasing more vanes than the pump requires.

Over 40 years of combined former Becker UK agent experience. Our senior team brings extensive industry knowledge of Becker vacuum pumps and their servicing requirements. That experience provides a valuable resource for engineers maintaining existing machinery, especially where the original documentation is no longer readily available or a pump has been operating for many years.

Competitive pricing and our Price Promise. We aim to offer replacement carbon vanes at attractive prices without sacrificing knowledgeable customer support. Our Customer Promises & Terms set out the conditions under which our Price Promise applies to comparable replacement carbon vanes available from qualifying UK suppliers. Customers should be able to source the right components at sensible prices from a business that understands what it sells.

ISO 9001:2015 certified and externally audited. Our quality management systems support our commitment to consistency, customer satisfaction and dependable service. We have spent decades developing a reputation based on genuine technical expertise, clear product information and honest commercial practices. We believe these qualities provide a stronger foundation for customer confidence than exaggerated marketing claims.

Engineering support when replacing vanes is not enough. A dry-running rotary vane pump with damaged internal components may need more than a fresh carbon vane set. Our Becker pump repair and refurbishment service is supported by OEM-trained engineers who can assist with inspection, servicing and repair. We understand the importance of identifying the reason for premature vane failure rather than simply fitting new parts and hoping the problem will disappear.

One supplier for vanes and associated Becker spares. Alongside WN 124-253 replacement carbon vanes, VacAir supplies Becker spare parts, including filters, service components and OEM replacement items. This broader product knowledge helps when maintenance work reveals that several components need attention at the same time.

UK stock with European and worldwide supply. We support industrial maintenance teams, manufacturers and vacuum pump service businesses requiring dependable access to replacement parts. Whether you are preparing a scheduled service for a KDX3.100 or responding to a DVX3.100 breakdown, our priority is to help you identify the correct WN 124-253 set, provide competitive pricing and arrange delivery as quickly as practical. Our approach remains rooted in technical knowledge, customer service and the reputation we have earned over decades.
