Becker WN124-252 Vanes 90140100004, 90140100007

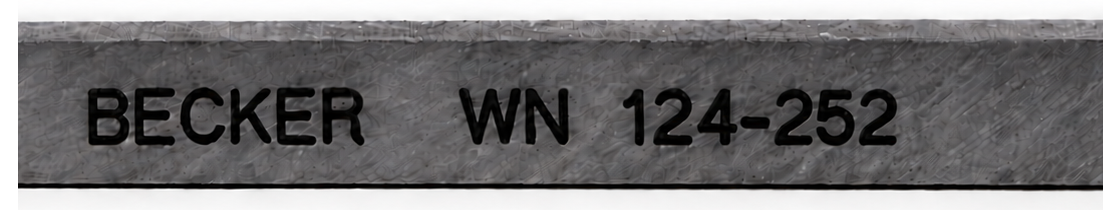

IDENTIFYING BECKER WN 124-252 CARBON VANES

BECKER PUMPS USING WN 124-252 VANES

WN 124-252 vanes are fitted to the Becker DVX3.60, DVX3.80, KDX3.60, KDX3.80, KVX3.60 and KVX3.80. Although the physical vane is the same, the quantity required differs according to the pump model.

REPLACING BECKER WN 124-252 CARBON VANES

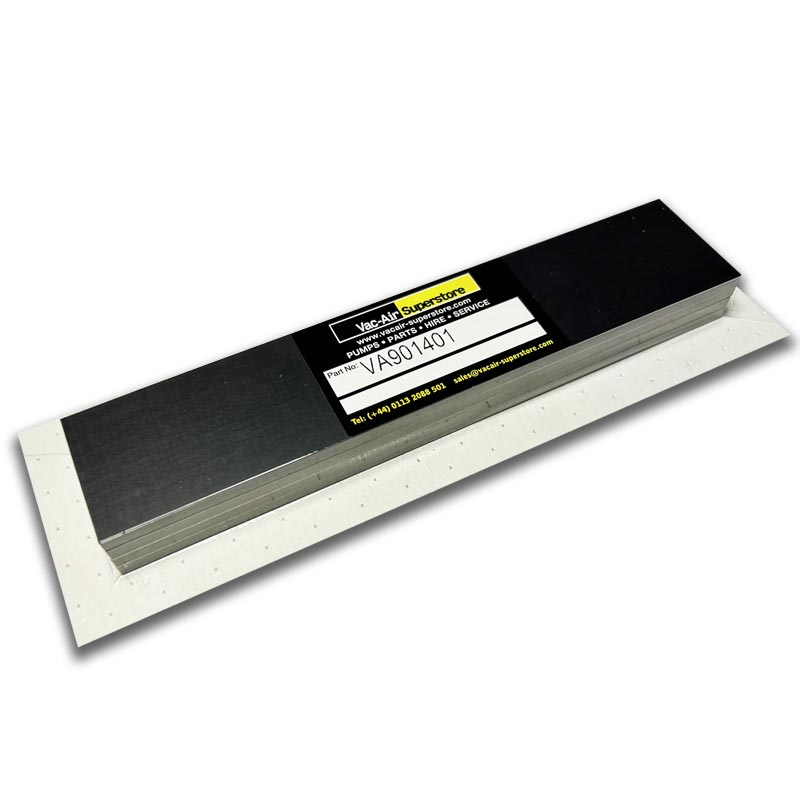

VacAir Superstore stocks and supplies Becker WN 124-252 replacement carbon vanes for selected Becker DVX, KDX and KVX dry-running rotary vane pumps. Supplied under our reference VA901401, these vanes correspond to Becker OEM part numbers 90140100004 and 90140100007. Both references use the same carbon vane, but they represent different quantities for the pumps in which they are fitted.

Each new WN 124-252 carbon vane measures 170 × 37.4 × 4.3 mm, with a new height of 37.4 mm and a specified minimum wear height of 26 mm. During normal dry-running operation, the vanes gradually wear as they maintain contact with the pump’s internal running surface. Periodic inspection and measurement are therefore important parts of preventative maintenance.

Choosing the correct replacement quantity is particularly important with WN 124-252. The Becker DVX3.60 and DVX3.80 require seven vanes, corresponding to OEM reference 90140100007. In contrast, the KDX3.60, KDX3.80, KVX3.60 and KVX3.80 each require four vanes, corresponding to 90140100004. Although the vane dimensions are identical, ordering the wrong set quantity can delay a scheduled service or leave a pump without enough replacement vanes.

When a pump is used regularly in industrial production, worn vanes can affect its ability to maintain the required operating performance. Leaving carbon vanes in service beyond their specified wear limit can also increase the risk of damage inside the pump. For this reason, servicing should be based on the manufacturer’s recommendations, actual running conditions and the measured condition of the complete vane set rather than waiting for a breakdown.

The removed vanes can reveal useful information about how the pump has been operating. Consistent, gradual wear may be expected, but unusual differences between vanes, damaged corners, fractures or heavy carbon deposits should prompt further investigation. Restricted filters, excessive temperature, internal scoring or a vane sticking in its rotor slot may indicate an underlying problem requiring attention before replacement vanes are fitted.

VacAir can assist customers servicing both the DVX series and the KDX/KVX series. If you are uncertain whether your pump requires the four-vane or seven-vane set, provide the complete Becker model designation, existing OEM part number or pump identification details. Our team can help identify the appropriate WN 124-252 / WN124-252 replacement carbon vanes before an order is arranged.

Recommended checks when inspecting or replacing WN 124-252 vanes:

FITTING WN 124-252 REPLACEMENT VANES Before opening the pump, safely isolate the equipment and follow the applicable Becker maintenance procedure. Identify the pump model and count the existing vanes so that the correct complete replacement set is available. For the DVX3.60 and DVX3.80, this means seven vanes; for the listed KDX and KVX models, four vanes are required. Carefully remove the old carbon vanes and examine the rotor slots for deposits, damage or restrictions. Carbon dust and other contamination should be removed using the appropriate servicing method. Check the condition of the internal running surfaces and investigate any signs of scoring or abnormal contact before proceeding. Each new vane should move freely within its rotor slot. Do not force a replacement vane into position or overlook a slot that appears damaged or restricted. Fit the complete correct quantity rather than mixing new vanes with partially worn components. The higher edge of the vane is the leading edge, with the chamfer following behind. The illustration shows the general orientation principle, but the correct direction of fitting must always be checked against the manufacturer’s instructions for the specific Becker pump. Once the pump has been reassembled, carry out the recommended checks and commissioning procedure. If the old vanes were broken, badly worn on one side or damaged unusually quickly, the cause should be investigated before returning the pump to continuous service.

UK, EUROPEAN & WORLDWIDE VANE SUPPLY

WHY BUY REPLACEMENT BECKER VANES FROM VACAIR?

Replacement carbon vane specialists since 1996. VacAir Superstore has spent decades supplying replacement vanes, vacuum pump spares and technical support to commercial and industrial customers. Our business is built around understanding vacuum pumps and their maintenance requirements, not simply listing part numbers in a general engineering catalogue. That experience helps customers obtain the right components for both planned servicing and unexpected breakdowns.

We understand the differences between Becker pump models. WN 124-252 is used across six listed DVX, KDX and KVX pumps, yet the required replacement quantity is not the same. The DVX3.60 and DVX3.80 need seven vanes, whereas the KDX3.60, KDX3.80, KVX3.60 and KVX3.80 need four. Our UK stock and specialist knowledge allow us to discuss the correct 90140100004 or 90140100007 set rather than treating every WN 124-252 enquiry as identical.

Over 40 years of combined former Becker UK agent experience. Our senior team has extensive practical knowledge of Becker vacuum pumps and the components needed to maintain them. This depth of experience is particularly useful when customers are working with older machines, uncertain model identification or equipment that has been modified during its service life.

Competitive prices backed by our Price Promise. We work to keep replacement carbon vane pricing competitive while offering the benefits of UK stock, knowledgeable support and dependable supply. Our Customer Promises & Terms explain how our Price Promise applies to qualifying comparable replacement carbon vanes offered by other UK suppliers. We believe customers should receive fair prices alongside the confidence that they are buying the correct vane for the job.

ISO 9001:2015 certified quality management. VacAir operates with an externally audited quality management system, supporting our commitment to customer satisfaction, consistency and responsible service. Clear technical advice, accurate product information and reliable business practices are central to the reputation we have developed within the vacuum pump industry.

OEM-trained engineers and a dedicated repair workshop. Sometimes replacing carbon vanes is only part of the solution. A pump showing repeated vane damage, abnormal internal wear or poor operating performance may require further investigation. Our Becker vacuum pump repair and refurbishment service provides access to experienced engineers who understand the equipment and can assist with diagnosis, servicing and repair.

Becker spare parts beyond carbon vanes. We also stock and supply a broad selection of Becker spare parts, including filters, OEM components and other maintenance items. This makes VacAir a practical point of contact for businesses undertaking wider vacuum pump servicing, rather than needing to source each item from a different supplier.

UK stock, worldwide delivery and a reputation built on experience. Whether you require a four-vane WN 124-252 set for a KVX3.80 or seven replacement vanes for a DVX3.60, our objective is straightforward: identify the correct parts, provide competitive pricing and help get them to you promptly. We support industrial customers in the UK and overseas with the same commitment to technical knowledge, honest service and long-term customer relationships.
