Rietschle 513702 Replacement Carbon Vanes – 55 x 39 x 4mm
VacAir supplies Rietschle 513702 replacement carbon vanes for 11 Elmo Rietschle dry-running vacuum pump and compressor models.

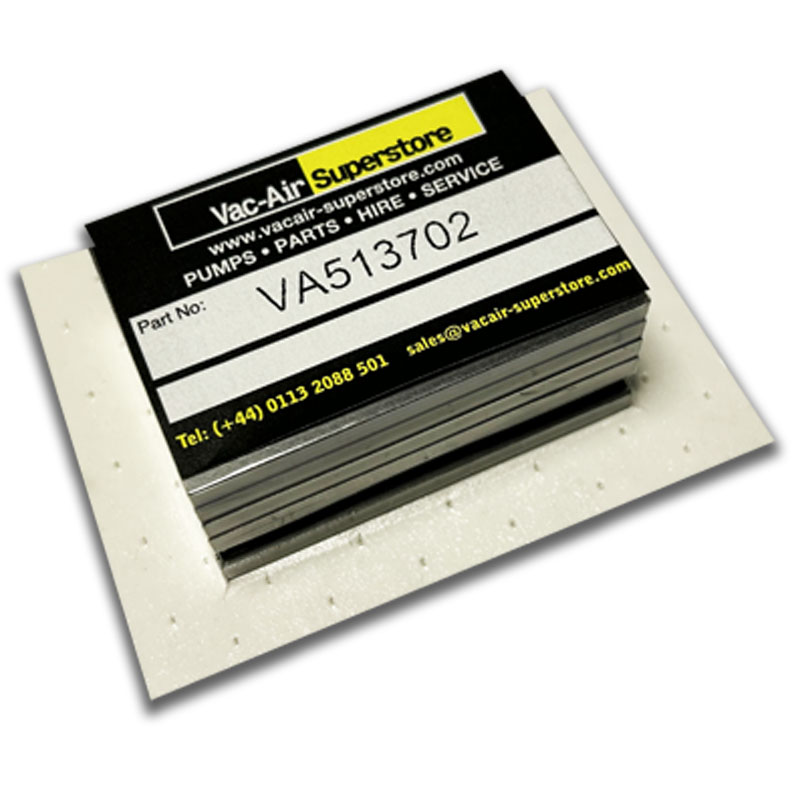

Rietschle Part No.: 513702
VacAir Part No.: VA513702
Dimensions: 55 × 39 × 4 mm
Material: Carbon
Set Quantity: 6, 7 or 8 vanes depending on pump model
Ordering 513702 vanes and unsure how many your pump requires? Tell us your Rietschle model and we can help identify the correct set quantity.
Call VacAir: 0113 2088501
Technical help and UK stock availability.
Rietschle part number 513702 identifies a 55 × 39 × 4 mm carbon vane used across 11 Elmo Rietschle dry-running rotary vane pump and compressor models.
The same 513702 vane is found in several DTN, KLT, KTN, TL, TLV, TR, VLT and VTN applications. Although the physical vane is common to these pumps, the number of vanes fitted varies by model, making the pump model important when ordering a complete replacement set.
Most of the Rietschle models listed below use 6 × 513702 vanes. The TR 15 DV uses 7, while the KTN 15 uses 8. Check the individual pump model before selecting the quantity required.
The compatibility table below links directly to each model-specific vane page and confirms the correct set quantity for all 11 applications.
|
TECHNICAL INFORMATION
|
KEY FEATURES
✓
High-quality carbon material
✓
Precision manufactured to 55 × 39 × 4 mm
✓
Used across 11 Rietschle pump and compressor models
✓
Designed for dry-running rotary vane applications
✓ Technical support for vane identification and pump applications |
The 513702 carbon vane is shared by the following Elmo Rietschle models. Select your pump for model-specific information, or use the set quantity below when ordering replacement vanes.
|
|
|
Rietschle 513702 carbon vanes are wearing components and their condition should be checked as part of routine pump maintenance. When replacing a complete set, first confirm the pump model because the 513702 family is used in 6, 7 and 8-vane configurations. With the pump opened for vane replacement, useful condition checks include: ✓ Rotor and rotor shaft condition
✓ Free movement and condition of the rotor slots
✓ Internal pump surfaces
✓ Bearings and excessive movement
✓ Inlet filter condition
✓ Signs of contamination, overheating or abnormal wear
Premature, uneven or broken vanes can be a symptom of another issue within the pump. Investigating abnormal wear before installing the replacement set may help prevent a repeat failure.
|
Inspect the pump condition when fitting replacement carbon vanes.
|
|
VacAir supplies Rietschle replacement carbon vanes throughout the UK, including 513702 vane sets for the pump models listed above. We also export vacuum pump vanes, spares and related components across Europe and worldwide. Express orders can be despatched using FedEx Express and DHL Express services where available, with next-day and timed delivery options helping reduce pump downtime. For particularly urgent requirements, customers can collect from our Leeds trade counter or contact us to arrange a direct same-day courier. |
|
|
Since 1996
Supplying vacuum pump vanes, spares and support
|
40+ Years
Vacuum pump industry experience
|
ISO 9001:2015
Accredited quality management system
|
Engineering Support
Experienced vacuum pump engineers
|
VacAir combines replacement vane supply with practical vacuum pump knowledge. We supply OEMs, distributors, maintenance engineers, service companies and end users throughout the UK and internationally.
That distinction matters when the requirement is more complicated than matching a number on a piece of carbon. Our team understands the pumps the vanes operate in and can help identify the correct replacement from the pump model, Rietschle part number and vane dimensions. We can also discuss poor pump performance, loss of vacuum, premature vane wear or vane breakage.
Where vanes have failed unexpectedly, our engineering experience can help identify areas of the pump that should be investigated before another set is fitted. If additional components are required, VacAir also supplies a broad range of vacuum pump spares.
Pumps requiring further attention can be supported by our modern vacuum pump repair and refurbishment workshop, together with field engineers providing servicing and repair support throughout the UK.
Our Price Promise reflects the same approach we have taken to replacement vanes for decades: competitive pricing backed by genuine vacuum pump knowledge and technical support.
What are the dimensions of Rietschle 513702 vanes?
Rietschle 513702 replacement carbon vanes measure 55 × 39 × 4 mm. This same vane is used in 11 Rietschle pump and compressor models, although the quantity fitted varies between applications.
Which Rietschle pumps use 513702 carbon vanes?
Rietschle 513702 vanes are used in the DTN 15, DTN 16, KLT 15, KTN 15, KTN 16, TL 15, TLV 15, TR 15 DV, VLT 15, VTN 15 and VTN 16.
How many 513702 vanes does my Rietschle pump need?
Most models in this family use 6 × 513702 vanes. The exception is the TR 15 DV, which uses 7 vanes, and the KTN 15, which uses 8 vanes. The compatibility table above gives the quantity for each individual model.
How can I identify a Rietschle 513702 vane?
Rietschle carbon vanes may carry a manufacturer part number, so 513702 can be a useful identification reference. The replacement vane measures 55 × 39 × 4 mm. Confirming the pump model as well allows the required set quantity to be checked.
What should I check while replacing 513702 vanes?
Check the rotor, rotor shaft, vane slots, internal pump surfaces, bearings and inlet filter, as well as looking for contamination, excessive heat or unusual wear. The vanes should be able to move correctly within the rotor slots.
Why have the carbon vanes in my Rietschle pump broken?
Carbon vanes naturally wear during operation, but broken vanes, uneven wear or unusually short service life can indicate that another aspect of the pump needs attention. Rotor-slot condition, bearings, internal surfaces, filtration, contamination and overheating are among the areas worth investigating before a replacement set is fitted.
Can VacAir help with a Rietschle pump that has lost vacuum?
Yes. VacAir works with vacuum pumps as well as supplying replacement vanes. If your Rietschle pump has lost vacuum, suffered a vane failure or is no longer performing correctly, our team can discuss the symptoms and the areas that may need checking. Workshop repair and servicing support is available where required.
Can VacAir fit Rietschle 513702 vanes?
Yes. VacAir provides vane replacement, vacuum pump servicing, fault investigation and workshop repair. If you would rather have the 513702 vane set professionally fitted, contact us with the pump model so we can discuss the work required.
