Becker DVT 3.60 vanes

BECKER DVT 3.60 REPLACEMENT VANES

The Becker DVT 3.60 uses a set of 7 carbon graphite vanes measuring 170 × 39 × 4 mm.

VacAir supplies precision-made replacement vanes for the Becker DVT 3.60 for routine maintenance, pump repair and overhaul applications.

The vane used in the DVT 3.60 is identified as WN 124-034. The Becker OEM reference for the set of 7 vanes is 90133000007.

REPLACING BECKER DVT 3.60 CARBON VANES

The Becker DVT 3.60 uses seven carbon graphite vanes in its dry-running rotary vane mechanism. These vanes gradually reduce in height during normal operation, making regular inspection important for maintaining pump performance. New WN 124-034 vanes have a height of 39 mm, with a specified minimum wear height of 21 mm. Damaged, cracked or unevenly worn vanes may require replacement before reaching that limit.

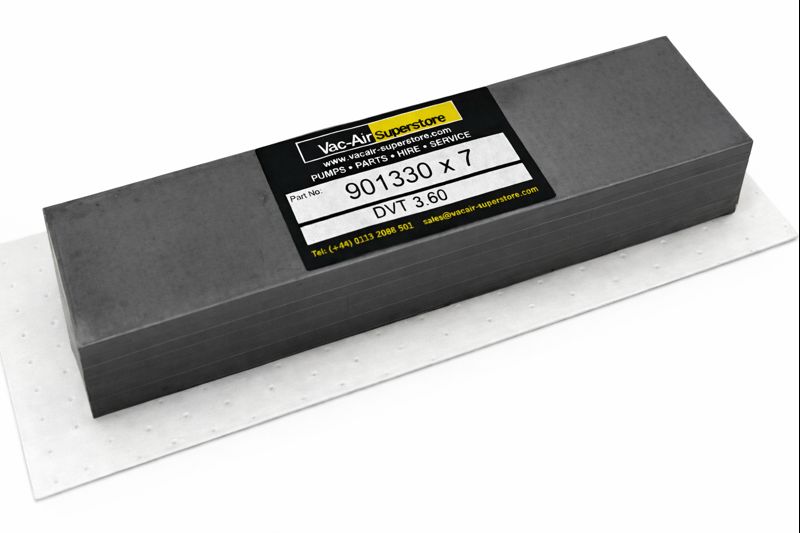

VacAir stocks WN 124-034 replacement carbon vanes for Becker 90133000007, reference VA901330. Each measures 170 × 39 × 4 mm (L × H × T), and a complete DVT 3.60 replacement requires seven vanes. Before fitting the new set, inspect the internal components carefully, particularly if the removed vanes show evidence of breakage, overheating or abnormal contact.

DVT 3.60 VANE INSPECTION & FITTING PROCEDURE

Click image to enlarge

1. Isolate and prepare the pump. Disconnect the electrical supply, prevent accidental starting and allow the DVT 3.60 to cool. Follow Becker’s maintenance instructions when opening the pump.
2. Remove the seven existing vanes. Inspect each one for cracking, chipped edges, uneven wear or missing sections. Measure the remaining height against the 21 mm minimum and account for any broken pieces.
3. Inspect the rotor slots. Shine a suitable inspection light along each slot, checking as far as possible towards the end. Look for deposits, scoring, damage or anything that could prevent a vane sliding freely.
4. Clean the internal areas. Remove carbon graphite dust and all loose fragments from the rotor slots, cylinder and accessible surfaces. Controlled compressed air may be used where permitted by the manufacturer’s instructions, with suitable dust control and protection. Avoid blowing debris further into the pump.
5. Check the replacement vanes. Confirm WN 124-034 and dimensions of 170 × 39 × 4 mm. Test that each vane slides smoothly in its slot without binding. Never force a vane into position.
6. Fit the first vane correctly. Position it in the upper accessible rotor slot, ensuring that the higher edge is the leading edge and the chamfer follows behind.
7. Rotate and fit the remaining vanes. Carefully turn the rotor by hand in accordance with Becker’s instructions, checking that the installed vane moves freely. Repeat until all seven replacement vanes have been fitted in their correct positions.
8. Carry out the final inspection. Confirm that the vanes move freely, no broken fragments remain and the rotor, cylinder, bearings and accessible components show no obvious damage. Check the inlet filter and relief valve as appropriate. Reassemble and test the pump following the manufacturer’s procedure.

If you are undertaking more extensive maintenance, VacAir can also supply replacement filters and other Becker vacuum pump spare parts. Our engineers can assist when internal wear, damaged vanes or other mechanical problems require specialist attention.

BECKER DVT 3.60 VANE FITTING & PUMP SERVICING

Many maintenance engineers replace Becker DVT 3.60 vanes in-house as part of routine pump maintenance. VacAir can also provide professional vane replacement and pump servicing.

Our experienced, OEM factory-trained vacuum pump engineers can replace DVT 3.60 vanes on site, or the pump can be sent to our workshop for inspection, servicing or a complete overhaul.

If your DVT 3.60 has suffered abnormal vane wear or loss of performance, our engineers can inspect the pump and advise whether vane replacement alone is appropriate or whether further repair work is required.

UK, EUROPEAN & WORLDWIDE SUPPLY

WHY BUY BECKER DVT 3.60 VANES FROM VACAIR?

VacAir Superstore has specialised in replacement carbon vanes since 1996. We supply industrial customers, vacuum pump service companies, maintenance engineers and distributors who need correctly identified replacement components supported by knowledgeable technical advice. Our experience goes beyond matching a part number. We understand how vane dimensions, pump model variations, correct set quantities and the condition of internal pump components affect successful maintenance.

Our senior management team has over 40 years of combined experience working for the former Becker UK agent. This background provides extensive familiarity with Becker vacuum pump construction, industrial applications and servicing requirements. For customers maintaining a Becker DVT 3.60, that experience is particularly valuable when identifying replacement vanes, investigating abnormal wear or deciding whether additional pump maintenance is necessary.

The DVT 3.60 uses seven WN 124-034 carbon graphite vanes, measuring 170 × 39 × 4 mm, with a 21 mm minimum wear height. The seven-vane replacement set is identified by Becker OEM reference 90133000007 and VacAir reference VA901330. Our WN 124-034 replacement carbon vanes master page provides identification and cross-compatibility information for this vane specification. Because the same vane is used in other Becker models, selecting the correct quantity for the DVT 3.60 is essential.

We maintain UK stock of WN 124-034 replacement carbon vanes and supply the correct seven-vane quantity for the Becker DVT 3.60. This means customers can obtain the required set without having to source individual vanes or risk ordering the wrong quantity. We can also assist with replacement filters, associated maintenance components and other products from our Becker spare parts range, helping engineers plan maintenance more efficiently.

Competitive pricing is supported by our Price Promise. We consider qualifying comparable replacement carbon vanes offered by UK suppliers, provided the alternative products are new, in stock, suitable for the same pump model and application, and of comparable specification and quality. OEM products, clearance stock, promotions, one-off offers and contract pricing are excluded. Requests must be made at quotation stage and are subject to our published Price Promise terms.

When a vacuum pump is out of service, obtaining the correct replacement vanes quickly can make a significant difference to production downtime. VacAir offers same-day despatch for in-stock vanes ordered by 4pm on working days, subject to order confirmation and carrier arrangements. For customers contacting us after that time, we will move heaven and earth to explore urgent despatch options where circumstances allow. Collection from our Leeds trade counter and dedicated courier arrangements can also be discussed when appropriate.

VacAir operates under an externally audited ISO 9001:2015 certified quality management system. We place considerable importance on accurate product identification, dependable business processes, customer satisfaction and honest technical advice. Our reputation has been built through decades of supplying replacement vacuum pump components and supporting customers who rely on their equipment for daily industrial operations.

Our highly experienced OEM factory-trained vacuum pump engineers can fit DVT 3.60 replacement vanes on site, undertake scheduled servicing or carry out a complete pump overhaul in our specialist workshop. If the existing vanes have fractured, the rotor slots are damaged or the cylinder has suffered abnormal scoring, we can investigate the cause before new components are installed. Further information is available through our Becker pump repair and servicing service.

A DVT 3.60 vane replacement is also an opportunity to assess the wider condition of the pump. The rotor and shaft, cylinder running surface, bearings, inlet filter, relief valve and internal cleanliness can all influence how reliably the equipment operates. If vanes have worn unevenly, broken prematurely or become restricted within their slots, replacing the set without identifying the underlying cause may lead to further damage. VacAir’s experience with Becker vacuum pumps allows us to provide practical guidance on these maintenance considerations.

From our Leeds premises, we supply replacement carbon vanes, vacuum pump filters and spare parts throughout the UK, Europe and worldwide. Whether you are carrying out a routine DVT 3.60 vane change, planning preventative maintenance or dealing with an unexpected pump failure, VacAir combines specialist product knowledge, UK stock, competitive pricing and experienced engineering support to help keep your equipment operating.
