Urgent Becker DTLF 2.250 Pump Failure?
VacAir Superstore supplies new, refurbished and replacement Becker DTLF 2.250 compressor pumps, with UK-wide support for urgent breakdowns, machine downtime and replacement compressor requirements.
✔ New Becker compressor pumps
✔ Refurbished replacement pumps where available
✔ UK-wide repair support
✔ Carbon vanes, filters and spare parts
✔ Engineer technical advice
✔ Fast response for large compressor pump enquiries
If your DTLF 2.250 has lost pressure, lost airflow, become noisy, started running hot or caused production downtime, our engineers can advise whether servicing, spare parts, workshop repair or replacement is the most practical route.
Common Problems with Becker DTLF 2.250 Compressor Pumps
The Becker DTLF 2.250 is a larger dry running rotary vane compressor pump. It is a pressure-only machine, so it should be treated differently from Becker VTLF vacuum pumps and Becker DVT combined vacuum and pressure pumps.
Common faults include:
- Worn carbon vanes
- Reduced pressure output
- Reduced airflow
- Broken or chipped vanes
- Blocked inlet filters
- Blocked or restricted discharge pipework
- Overheating
- Excessive noise or vibration
- Bearing wear
- Dust or process contamination
- Pressure relief or regulating valve problems
In printing, packaging and paper handling applications, poor pressure performance is often caused by worn vanes, blocked filtration, overheating, restricted pipework or contamination reducing airflow through the compressor.
Becker DTLF 2.250 Pump Technical Specifications
The Becker DTLF 2.250 is a larger dry running rotary vane compressor pump designed for high-volume oil-free pressure air generation. It is used where industrial machinery requires clean compressed air without oil being introduced into the compression chamber.
The DTLF 2.250 is available in several pressure versions, including +0.8 bar with a 7.5 / 9.0 kW motor and +1.0 bar with an 11.0 / 13.2 kW motor. Always check the pump nameplate before replacing or quoting a unit, as motor size and pressure rating can vary by configuration.
| Model | M3/H 50Hz / 60Hz |
Pressure Relative 50Hz / 60Hz |
Motor Size kW 50Hz / 60Hz |
| Becker DTLF 2.250 | 247 / 295 | 0.8 | 7.5 / 9.0 |
| 1.0 | 11.0 / 13.2 | ||
| 1.8 | 15 / 18 |
Key Features of the Becker DTLF 2.250
- Large pressure-only dry running rotary vane compressor
- Oil-free compression chamber
- Higher airflow than the KDT compressor range
- Self-lubricating carbon vane technology
- Continuous duty rated
- Air cooled construction
- Suitable for high-volume industrial pressure air applications
- Direct drive design
- Available in different pressure versions
- Proven Becker DTLF-series reliability
Typical Applications for the Becker DTLF 2.250
The Becker DTLF 2.250 is used where clean, high-volume pressure air is required. It is not a vacuum pump, so it should be selected for compressor duties rather than suction applications.
- Printing and print finishing pressure air duties
- Packaging machinery
- Paper handling and separation systems
- Blow-off and drying applications
- Air knives and air assist systems
- Pneumatic conveying support
- Industrial process air
- General manufacturing machinery
- Applications requiring oil-free pressure air
Maintenance Tips for the Becker DTLF 2.250 Pump
The Becker DTLF 2.250 is designed for larger continuous industrial pressure duty, but routine maintenance is important because compressor pumps run hot and depend on clean airflow.
Useful maintenance checks include:
- Inspect inlet filters regularly and replace blocked or contaminated elements
- Monitor pressure and airflow at the machine
- Check for changes in noise, vibration or running temperature
- Keep cooling airflow clear
- Inspect carbon vane wear as part of planned servicing
- Check discharge pipework for restrictions, heat build-up or incorrect valve settings
- Confirm pressure relief and regulating valves are working correctly
- Keep dust and debris away from the compressor intake area where possible
- Investigate sudden pressure drops before they lead to more costly repairs
For larger compressor applications, blocked filtration or discharge restriction can quickly increase operating temperature. If a DTLF compressor is running hot, the filter, cooling airflow and discharge line should be checked before assuming the pump has failed internally.
Becker DTLF 2.250 Service Parts
Service components and spare parts support for the Becker DTLF 2.250 dry running rotary vane compressor pump.
Repair or Replace a Becker DTLF 2.250 Compressor?
Many Becker DTLF 2.250 compressor pumps can be repaired economically if vane wear, blocked filters or bearing issues are identified before major internal damage occurs.
Repair is often suitable where the pump has:
- worn vanes 901367010005 WN124-196
- blocked inlet filter 909512 and blast filters 909510
- reduced pressure or airflow
- noisy bearings
- minor contamination
- serviceable wear components
Replacement may be more cost effective where the pump has:
- severe internal scoring
- catastrophic vane failure
- motor failure
- excessive running hours
- repeated breakdown history
- major rotor or cylinder damage
VacAir engineers can advise whether servicing, overhaul or replacement is the best option for your application and downtime requirements. We can also advise on refurbished vacuum pumps and compressor pumps where available.
Becker DTLF 2.250 Servicing & Repairs
VacAir Superstore provides UK-wide support for Becker DTLF compressor pumps including:
- Compressor pump servicing
- Carbon vane replacement
- Filter replacement
- Bearing replacement
- Fault diagnosis
- Pressure and airflow testing
- Emergency breakdown support
- Genuine Becker spare parts
- Workshop overhauls
- Replacement compressor pump advice
Our engineers support customers throughout the UK across print, packaging, paper handling, manufacturing and general industrial sectors.

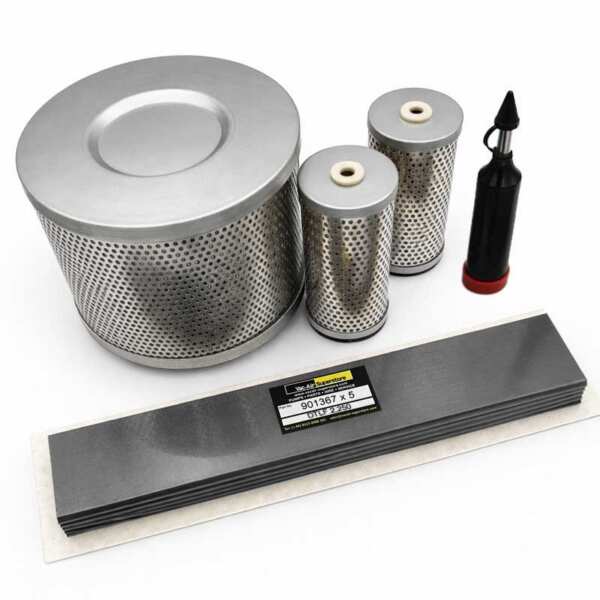

Becker DTLF 2.250 Service Kits & Spare Parts
VacAir Superstore can supply spare parts and maintenance components for Becker DTLF compressor pumps, including:
- Carbon vane sets 90136701005 WN124-196
- Inlet filters and compressor filters 909512 and 909510
- Service components
- Bearings
- High Temperature Grease
- Gasket kits
- Couplings
- Pressure regulating and relief components where applicable
- Other repair parts
Using suitable Becker spare parts helps maintain pressure output, airflow, reliability and long-term compressor life. View Becker spare parts or Becker carbon vanes.
Why Consider a DVP Alternative?
For some pressure-air applications, a DVP dry running rotary vane compressor pump may provide a practical alternative to a Becker DTLF 2.250, particularly where price, availability or replacement strategy is important.
The Becker DTLF range remains a well-proven high-volume dry running compressor design, especially where oil-free industrial pressure air is required. However, some customers also consider DVP pumps where they need a competitively priced industrial solution with reliable oil-free operation and strong long-term support.
DVP dry running rotary vane compressor pumps, available through VacAir or our sister company Vacuum Pumps UK, use carbon vane technology to provide dependable oil-free pressure air for industrial machinery.
Key advantages of considering a DVP alternative can include:
- Reliable oil-free pressure air
- Dry running carbon vane technology
- Competitive replacement option for existing compressor pumps
- Good availability of spare parts and servicing support
- Suitable for packaging, printing, paper handling and industrial applications
VacAir Superstore can advise whether retaining a Becker DTLF 2.250, repairing the existing unit or considering an alternative compressor pump is the most suitable choice for your application.
Need an Urgent Replacement Becker Compressor Pump?
If your Becker DTLF 2.250 has failed and production has stopped, VacAir Superstore can help with:
- New Becker compressor pumps
- Replacement carbon vanes
- Becker spare parts
- Workshop overhaul
- Technical support
- Refurbished replacement pumps
- UK-wide compressor pump support
Becker DTLF 2.250 Compressor Pump FAQs
What is the Becker DTLF 2.250 used for?
The Becker DTLF 2.250 is a larger dry running rotary vane compressor pump used where high-volume oil-free pressure air is required. Typical applications include printing, packaging, paper handling, blow-off, drying, air knives, separation, pneumatic conveying support and general industrial process air duties.
Is the Becker DTLF 2.250 larger than the KDT range?
Yes. The Becker DTLF range is generally a larger industrial compressor range than the KDT series. The DTLF 2.250 provides substantially higher airflow than KDT models such as the KDT 3.60, KDT 3.80, KDT 3.100 and KDT 3.140.
Is the Becker DTLF 2.250 a compressor pump?
Yes. The Becker DTLF 2.250 is a pressure-only dry running rotary vane compressor. It is designed to generate pressure air, not vacuum, so it should not be confused with Becker VTLF vacuum pumps or DVT combined vacuum and pressure pumps.
Is the Becker DTLF 2.250 oil-free?
Yes. The Becker DTLF 2.250 is a dry running oil-free compressor pump. It uses self-lubricating carbon vanes rather than oil inside the compression chamber.
What flow and pressure does the Becker DTLF 2.250 produce?
The Becker DTLF 2.250 has a nominal volume flow of approximately 247 m³/h at 50Hz and 294 m³/h at 60Hz. Common pressure versions include +0.8 bar, +1.5 bar and +1.8 bar relative, with the +1.8 bar version using a larger motor. The pump nameplate should always be checked before quoting or replacing.
Does the Becker DTLF 2.250 use carbon vanes?
Yes. The Becker DTLF 2.250 uses self-lubricating carbon vanes. These are normal wear parts and should be inspected and replaced as part of planned maintenance, especially in continuous industrial compressor applications.
What maintenance does a Becker DTLF 2.250 require?
Routine maintenance normally includes checking inlet filtration, inspecting carbon vanes, monitoring pressure and airflow, keeping cooling airflow clear, checking discharge pipework and confirming the pressure relief or regulating arrangement is working correctly.
Can VacAir service or repair Becker DTLF compressor pumps?
Yes. VacAir Superstore provides servicing, vane replacement, filter replacement, fault diagnosis, workshop repairs and replacement pump support for Becker DTLF dry running rotary vane compressor pumps throughout the UK.
