Home Becker Vanes

Becker WN124-196 Vanes, 90136701005

BECKER WN124-196 REPLACEMENT CARBON VANES

VacAir Superstore stocks Becker WN124-196 replacement carbon vanes, also identified as WN 124-196, corresponding to Becker OEM reference 90136701005.

Vane code: WN124-196 / WN 124-196

Becker OEM reference: 90136701005

VacAir reference: VA901367

Supplied as: Set of 5 replacement vanes

Vane dimensions: 355 × 65 × 5 mm

Minimum vane height: 41 mm

Material: Carbon graphite

Availability: IN STOCK

PUMP DOWN? WE GO THE EXTRA MILE!

When your pump stops, production can stop too.

Order by 4pm on working days for same-day despatch of in-stock vanes, subject to confirmation and carrier arrangements.

AFTER 4PM? CALL US ANYWAY!

We’ll move heaven and earth to get your vanes on their way. Where possible, we can arrange urgent despatch after our normal cut-off.

Because getting your machinery running again matters to us.

Vane for Becker 90136701005 WN124-196

TRUSTED BY INDUSTRY FOR OVER 30 YEARS

☎

NEED REPLACEMENT CARBON VANES?

Why waste time endlessly searching? Just give us a quick call.

No online checkout risk. No tedious forms.
Just a quick call with vacuum pump specialists who know their products.

No Doubts – No Worries!

Get the right vanes at the right prices, with delivery arranged around how urgently you need them.

CALL THE EXPERTS NOW ☎ 0113 2088501 One quick call could save you time and money.

Prefer to write to us?

✉ SEND AN ENQUIRY →

URGENT ORDERS WELCOME

UK, European & Worldwide Supply

VacAir Superstore - Order before 4PM for same day despatch
DETAILED PRODUCT INFORMATION

BECKER WN124-196 / WN 124-196 REPLACEMENT CARBON VANES — 90136701005

VacAir Superstore supplies Becker WN124-196 replacement carbon vanes, also written as WN 124-196, corresponding to Becker OEM reference 90136701005. These carbon graphite vanes are supplied as a set of five for the compatible Becker dry-running rotary vane pumps listed below.

Whether you are arranging planned maintenance or replacing damaged vanes following a breakdown, contact our experienced spares team for competitive pricing, current stock availability and delivery options.

Original Becker vanes are commonly marked WN 124-196 on the vane edge. The complete OEM reference 90136701005 may not appear on the vane itself. Use the code together with the dimensions and pump model to confirm the replacement required.

Ordering WN124-196 or 90136701005 replacement vanes?

Give us the vane reference, pump model and quantity required. We will confirm the appropriate replacement set, quotation and available despatch options. The vanes offered on this page are replacement carbon vanes, not genuine Becker OEM vanes.

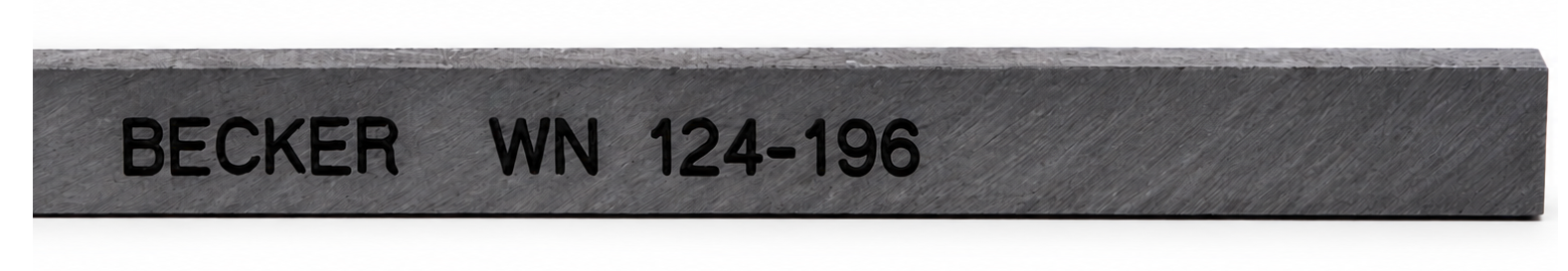

WN 124-196 identification code marked on the edge of an original Becker carbon vane

WN 124-196 identification marking on an original Becker carbon vane.

BECKER PUMP COMPATIBILITY

The following models are listed for this WN 124-196 vane family. Select a linked model for its model-specific vane information. Where a pump has different versions or serial-number variations, confirm the vane dimensions and applicable reference before ordering.

VTLF Series

VTLF 200

VTLF 250

VTLF 2.200

VTLF 2.250

VTLF 360

DTLF Series

DTLF 200

DTLF 250

DTLF 2.200

DTLF 2.250

DTLF 360

DVTLF Series

DVTLF 250

DVTLF 360

DVTLF 2.250

DVTLF 2.400

DVTLF 2.500

TECHNICAL / WEAR INFORMATION

Vane Code WN124-196 / WN 124-196
Becker OEM Reference 90136701005
VacAir Code VA901367
Dimensions 355 × 65 × 5 mm
New Vane Height 65 mm
Minimum Wear Height 41 mm
Quantity Per Pump 5 vanes
Material Carbon graphite

KEY FEATURES

✓ Replacement carbon vanes for Becker WN124-196 applications

✓ Corresponding Becker OEM reference: 90136701005

✓ Carbon graphite construction, measuring 355 × 65 × 5 mm

✓ Supplied as a complete set of five vanes

✓ Pricing, delivery and technical support from experienced vacuum pump specialists

REPLACING BECKER WN 124-196 CARBON VANES

VacAir Superstore stocks and supplies Becker WN 124-196 replacement carbon vanes for compatible VTLF, DTLF and DVTLF dry-running rotary vane pumps. These substantial carbon graphite vanes are used in industrial vacuum and pressure equipment where reliable operation can be essential to production. Regular vane inspection is particularly important when a pump is working for extended periods or forms part of a continuous manufacturing process.

Each new WN 124-196 vane measures 355 × 65 × 5 mm, with an original vane height of 65 mm. The specified minimum wear height is 41 mm. During servicing, measure the remaining height of each vane and examine its full length for cracks, chipped edges, uneven contact or other damage. Because these vanes are 355 mm long, careful handling and inspection along the entire running edge are important.

VacAir supplies this replacement specification under reference VA901367, corresponding to Becker OEM part number 90136701005. The replacement set contains five matching carbon vanes. The vane marking may be written as either WN 124-196 or WN124-196. Where a pump has different versions or serial-number variations, confirm the applicable vane specification before fitting the replacement set.

For larger VTLF, DTLF and DVTLF equipment, the consequences of a vane failure can extend beyond the replacement carbon itself. Broken fragments may damage the cylinder running surface or rotor, while excessive dust, poor filtration or mechanical wear may contribute to premature failure. A thorough inspection before reassembly can therefore help prevent a straightforward vane replacement from becoming a more expensive pump repair.

WN 124-196 maintenance inspection checklist:

✓ Confirm the WN 124-196 vane specification

✓ Check the applicable pump model and version

✓ Inspect all five replacement positions

✓ Measure each vane against the 41 mm wear limit

✓ Examine the full 355 mm length for damage

✓ Remove accumulated carbon dust and fragments

✓ Inspect the rotor and rotor shaft condition

✓ Examine the cylinder for scoring or damage

✓ Check bearings for wear or abnormal movement

✓ Inspect inlet filters and relief valve operation

✓ Investigate overheating or contamination

✓ Check that each vane slides smoothly into its rotor slot without binding

CORRECT CARBON VANE ORIENTATION

Before installing Becker WN 124-196 replacement carbon vanes, thoroughly clean the rotor slots and inspect them for damage, carbon deposits or fragments from the previous set. Each vane must slide freely within its slot without binding. With a vane length of 355 mm, it is particularly important to ensure that movement is not restricted anywhere along the slot.

The higher edge of the vane is the leading edge. The chamfer follows behind the leading edge, as illustrated in the adjacent VacAir fitting diagram. Confirm the actual vane profile, the pump’s direction of rotation and the manufacturer’s fitting instructions before installation.

This WN 124-196 replacement set contains five matching vanes. Confirm that the set is correct for the particular VTLF, DTLF or DVTLF pump version being serviced. Examine the cylinder running surface, rotor, shaft and bearings before fitting new carbon, especially where previous vanes have suffered abnormal wear or breakage.

Always follow the relevant Becker manufacturer’s maintenance and fitting instructions. If the pump has experienced repeated vane failures, abnormal noise, overheating or reduced performance, VacAir’s experienced engineers can assist with inspection, professional vane fitting, servicing and mechanical repairs.

Becker WN 124-196 carbon vane fitting diagram showing leading edge and trailing chamfer
WN 124-196 wear limit: Original vane height 65 mm; minimum wear height 41 mm. This replacement specification is supplied as a five-vane set. Confirm compatibility with the particular pump version, replace vanes that have reached their wear limit and investigate abnormal wear or damage before fitting replacements.
VANE FITTING & BECKER PUMP REPAIRS →

Questions about your vanes or pump? Just call us for guidance. We’re vacuum pump specialists who know these products and pumps inside out. 0113 2088501

UK, EUROPEAN & WORLDWIDE VANE SUPPLY

VacAir Superstore supplies Becker WN 124-196 replacement carbon vanes from UK stock to industrial customers, engineering departments, pump service companies and maintenance contractors throughout the United Kingdom, Europe and worldwide.

The larger Becker VTLF, DTLF and DVTLF pumps covered by this vane family may form an important part of a production process. When a pump is stopped for maintenance or unexpected repair, obtaining the correct replacement carbon quickly can make a substantial difference. In-stock orders confirmed before 4pm on working days can qualify for same-day despatch, subject to order confirmation and carrier arrangements.

NEED VANES URGENTLY AFTER 4PM? CALL US ANYWAY.

At VacAir, we don’t simply stop trying to help when the normal despatch cut-off has passed. We’ll move heaven and earth to get your replacement vanes on their way and help get your machinery running again as quickly as possible. Where circumstances allow, we can make special arrangements for urgent despatch outside our normal cut-off time.

We use FedEx Express and DHL Express services wherever available, including next-day and timed delivery options. Urgent UK requirements can also be discussed for collection from our Leeds trade counter or direct delivery by same-day courier, subject to availability and arrangements.

For urgent assistance or a delivery quotation, call 0113 2088501 or email sales@vacair-superstore.com. Quote WN 124-196, Becker 90136701005 or VA901367, together with your pump model and delivery destination.

VacAir Superstore UK, European and worldwide delivery of Becker WN 124-196 carbon vanes

WHY BUY REPLACEMENT BECKER VANES FROM VACAIR?

Since 1996
Vane Supply
40+ Years
Former Becker UK Agent Experience
ISO 9001:2015
Quality Management
OEM-Trained
Engineers

Replacement carbon vane specialists since 1996. VacAir has supplied replacement vanes, vacuum pump spare parts and specialist technical support to industrial customers for three decades. We work with factory maintenance departments, machine builders, service engineers and distributors who need dependable replacement components at competitive prices. Our experience is particularly valuable when a pump is critical to production and the correct vane specification must be established without unnecessary delay.

UK stock of Becker WN 124-196 replacement carbon vanes. VacAir stocks the 355 × 65 × 5 mm carbon graphite replacement vane identified by WN 124-196 or WN124-196. Our reference is VA901367, corresponding to Becker OEM reference 90136701005. We supply a complete set of five matching replacement vanes. These are high-quality replacement carbon vanes, not genuine Becker OEM vanes. Our team can help confirm the correct specification for the particular VTLF, DTLF or DVTLF pump version.

More than 40 years of combined former Becker UK agent experience. Our senior team brings substantial practical knowledge of Becker vacuum pumps, their industrial applications and maintenance requirements. We understand that larger dry-running pumps require careful attention to rotor condition, vane wear, filtration and correct fitting. VacAir is a specialist vacuum pump business, not a generic parts catalogue. Customers can speak to people who understand the equipment behind the part number.

Competitive replacement vane pricing and our Price Promise. We aim to supply high-quality replacement carbon vanes at genuinely competitive prices, supported by experienced technical assistance. Our Price Promise applies to qualifying, genuinely comparable replacement carbon vanes offered by other UK suppliers, subject to our published conditions. Customers can request a competitive quotation while benefiting from UK stock and specialist product knowledge.

Customer satisfaction and externally audited ISO 9001:2015 quality management. VacAir operates an ISO 9001:2015 certified quality management system, with externally audited processes supporting consistent service, customer satisfaction and continual improvement. Accurate product information, honest communication and dependable support are important to us. Our reputation has developed through long-standing relationships with customers who value both the products we supply and the experience behind them.

We do not fabricate product reviews, invent customer ratings or display artificial review scores on our website or provide them to search engines.

Our products, expertise and reputation have supported customers across the vacuum pump industry for decades.

OEM-trained engineers and dedicated Becker pump repair facilities. Our engineering capabilities extend well beyond supplying carbon vanes. VacAir’s experienced engineers can fit replacement WN 124-196 vanes, inspect rotor and cylinder condition, investigate abnormal wear and undertake mechanical servicing or repairs. Our Becker pump repair and refurbishment workshop provides professional fitting, servicing and repair support at highly competitive rates.

Comprehensive Becker spare parts and maintenance support. Alongside replacement carbon vanes, VacAir supplies a wide range of Becker vacuum pump spare parts, including OEM components and quality replacement alternatives. Our team can help customers source filters, additional service parts and components required for wider pump maintenance, reducing the need to deal with several unrelated suppliers.

Practical support for planned shutdowns and urgent breakdowns. Whether your maintenance programme involves a Becker VTLF 250, DTLF 2.250 or a compatible DVTLF model, VacAir can help identify the correct vane set and arrange suitable delivery. We understand the importance of keeping industrial equipment operational and aim to combine competitive pricing, correct replacement parts, experienced technical advice and responsive UK or international despatch.

Decades of selling the right vanes at the right prices

FREQUENTLY ASKED QUESTIONS

What is Becker vane WN124-196?
WN124-196 is a Becker vane identification code, commonly written on the vane edge as WN 124-196. VacAir supplies replacement carbon graphite vanes for the corresponding applications, measuring 355 × 65 × 5 mm.
What is the Becker part number for WN 124-196?
The Becker OEM reference used on this page is 90136701005. VacAir supplies the corresponding replacement carbon vanes as a set of five. Confirm the pump model and dimensions when ordering.
Are these genuine Becker OEM vanes?
No. These are replacement carbon vanes supplied by VacAir Superstore. Becker model names, WN codes and OEM references are used to identify the intended application.
What size are the replacement vanes?
The dimensions are 355 × 65 × 5 mm. Check the dimensions alongside the pump model and vane reference before ordering.
What is the minimum wear height?
The new vane height is 65 mm, with a stated minimum wear height of 41 mm. Follow the maintenance instructions applicable to your pump, and investigate damaged or unevenly worn vanes even if they remain above the wear limit.
Why does my vane show WN 124-196 but not 90136701005?
Original Becker vanes commonly carry the WN identification marking on their edge rather than the complete OEM part number. Give us the visible marking and your pump model when requesting a quotation.
Which Becker pumps use this vane family?
Applications are listed in the VTLF, DTLF and DVTLF compatibility section above, including VTLF 2.250 and DTLF 2.250. Check the model-specific information and applicable pump version before ordering.
How many vanes are supplied?
This replacement set contains five carbon vanes. Tell us how many pumps you are servicing so we can quote the required number of sets.
Is WN124-196 the same as WN 124-196?
Yes. WN124-196 and WN 124-196 are two ways of writing the same vane identification code. The corresponding Becker OEM reference shown here is 90136701005.
How do I get a price and delivery date?
Call 0113 208 8501 during our Monday-to-Friday office hours of 9am–5pm, or send an enquiry with your vane code, pump model, quantity and delivery destination. We will confirm pricing, stock availability and delivery options.

MORE THAN JUST REPLACEMENT VANES
vacuum pumps

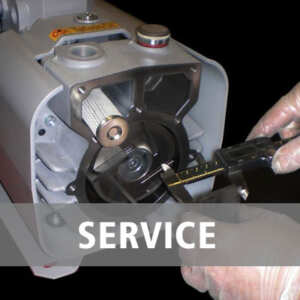

Vacair Superstore Pump service

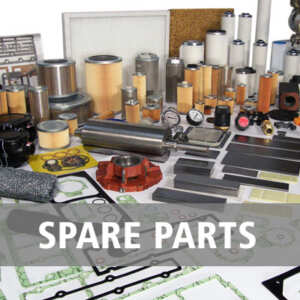

Vacair superstore spare parts

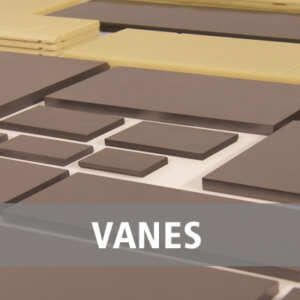

carbon-pump-vanes
vacuum pump filters

Need WN124-196 replacement vanes? Ask VacAir for prices, stock and delivery.

Quote Becker reference 90136701005, your pump model and the quantity required.
