At VacAir Superstore we can supply you with a new Elmo Rietschle Gardner Denver vacuum pump, or we can replace your old pump with a more cost effective solution.
We supply replacement carbon vanes, filters and all spares for Elmo Rietschle Gardner Denver units. We also have a service division where we can maintain and repair your pump. Loan pumps are available to avoid machine down time.
Elmo Rietschle New Style Dry Running Rotary Vane Vacuum Pumps
Elmo Rietschle have a range of dry running rotary vane pumps, including V-VTE, V-VTN, V-VTA AND V-VTR.
V-VTE Series
Flow : 3.5 – 12 m3/h
Max. Vacuum : 150 mbar Abs

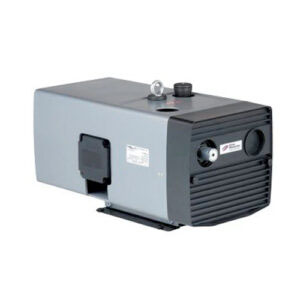

V-VTN Series
Flow : 17 – 50.4 m3/h
Max. Vacuum : 150 mbar Abs

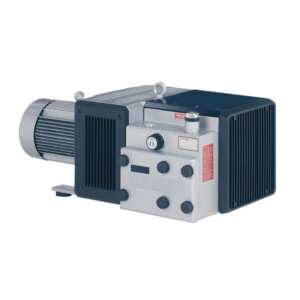

V-VTA Series
Flow : 55 – 170 m3/h
Max. Vacuum : 150 mbar ABs

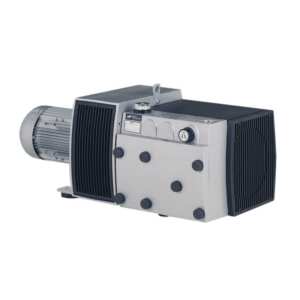

V-VTR Series
Flow : 100 – 155 m3/h
Max. Vacuum : 150 mbar Abs
| Model | M3/Hr 50 / 60Hz | Max Vacuum mbar Abs 50 / 60 Hz |
Motor Size Kw 50 / 60 Hz |
|
| 3PH | 1PH | |||
| VTE3 | 3.5/4.2 | 150 | 0.12/0.45 | 0.12/0.45 |
| VTE6 | 6.0/7.2 | 150 | 0.25/0.30 | 0.25/0.30 |
| VTE8 | 8.0/9.6 | 150 | 0.37/0.44 | 0.35/0.42 |
| VTE10 | 10.0/12.0 | 150 | 0.37/0.44 | 0.37/0.44 |
| VTN16 | 17/20.5 | 150 | 0.55/0.65 | 0.55/0.65 |
| VTN26 | 27/32 | 150 | 0.75/0.90 | 0.75/0.90 |
| VTN41 | 42/50.4 | 150 | 1.5/1.8 | |
| VTA60 | 55/66 | 150 | 1.5/1.8 | |
| VTA80 | 77/92 | 150 | 2.2/2.6 | |
| VTR100 | 100/120 | 150 | 3.0/3.4 | |
| VTR140 | 130/155 | 150 | 4.0/4.8 | |
Gardner Denver and Elmo Rietschle New Style Dry Running Rotary Compressors
| Model | M3/Hr 50 / 60Hz |
Max Pressure mbar Abs 50 / 60 Hz | Motor Size Kw 50 / 60 Hz |
|
| 3PH | 1PH | |||
| DTE6 | 6.0/7.2 | 1000 | 0.25/0.30 | 0.25/0.30 |
| DTE8 | 8.0/9.6 | 1000 3 ph/600 1 ph | 0.37/0.44 | 0.25/0.30 |
| DTE10 | 10.0/12.0 | 1000 3 ph/800 1 ph | 0.37/0.44 | 0.37/0.44 |
| DTN16 | 17/20.5 | 700/600 | 0.55/0.65 | 0.55/0.65 |
| 17/20.5 | 1000 | 0.75/0.9 | 0.75/0.90 | |
| DTN26 | 26.0/31.2 | 600/500 | 0.75/0.90 | 0.75/0.90 |
| 26.0/31.2 | 1000 | 1.1/1.3 | 1.10/1.30 | |
| DTN41 | 43.5/52.2 | 700/600 | 1.5/1.8 | |
| 43.5/52.2 | 1000 | 1.85/2.2 | ||
| DTA60 | 58/70 | 700/500 | 2.2/2.6 | |
| 58/70 | 1400/1500 | 3.0/3.6 | ||
| DTA80 | 73/88 | 900/700 | 3.0/3.6 | |
| 73/88 | 1500 | 4.0/4.8 | ||
| DTR100 | 100/120 | 1000 | 4.0/4.8 | |
| 100/120 | 1500/1400 | 5.5/6.5 | ||
| DTR140 | 130/155 | 1000 | 5.5/6.5 | |
| 130/155 | 1500 | 7.5/9.0 | ||
Gardner Denver and Elmo Rietschle New Style Dry Running Rotary Vane Vacuum Pump
| Model | M3/Hr 50 / 60Hz |
Max Vacuum mbar Abs 50 / 60 Hz |
Max Pressure mbar Abs 50 / 60 Hz | Motor Size Kw 50 / 60 Hz |
| 3PH | ||||
| KTN16 | 17/19.8 | 600 | 600 | 0.75/0.90 |
| KTN26 | 26/31.5 | 600 | 600 | 1.1/1.3 |
| KTN41 | 42.5/51.0 | 600 | 600 | 1.85/2.2 |
| KTA60/1 | V=54.3 P= 54.0 (50Hz) | 600 | 600 | 2.2/2.6 |
| V=64.1 P = 63.7 (60Hz) | 600 | 700 | 3.0/3.6 | |
| KTA60/2 | V=40 P=57.6 (50Hz) | 600 | 600 | 2.2/2.6 |
| V=47.2 P=67.9 (60Hz) | 600 | 700 | 3.0/3.6 | |
| KTA60/3 | V=59.5 P=45 (50Hz) | 600 | 600 | 2.2/2.6 |
| V=70.2 P=53.1 ( 60Hz ) | 600 | 700 | 3.0/3.6 | |
| KTA80/1 | V=70 P=68.5 (50Hz) | 600 | 600 | 3.0/3.6 |
| V=82.6 P=80.8 (60Hz) | 600 | 700 | 4.0/4.8 | |
| KTA80/2 | V=50.5 P=73.0 (50Hz) | 600 | 600 | 3.0/3.6 |
| V=60 P=86.1 (60Hz) | 600 | 700 | 4.0/4.8 | |
| KTA80/3 | V=74.5 P=57.0 (50Hz) | 600 | 600 | 3.0/3.6 |
| V=87.9 P= 67.3 (60Hz) | 600 | 700 | 4.0/4.8 | |
| KTR100 | V=103.6 P= 110 (50Hz) | 600 | 600 | 5.5/6.5 |
| V= 127.9 P= 136.5 (60Hz) | ||||
| KTR140 | V= 131.3 P= 136.4 (50Hz) | 600 | 600 | 7.3/8.0 |
| V= 156.1 P= 161.3 (60Hz) | ||||
| KTR140 DVV | V= 57/78 P=76 (50Hz) | 600 | 600 | 7.5/9.0 |
| V= 71.7/95 P=91.9 (60Hz) |
Rietschle Old Style Dry Rotary Vane Vacuum Pumps
| Model | M3/Hr 50 / 60Hz |
Max Vacuum mbar Abs 50 / 60 Hz |
Motor Size Kw 50 / 60 Hz |
|
| 3PH | 1PH | |||
| VTE3 | 3.5/4.2 | 150 | 0.12/0.45 | 0.12/0.45 |
| VTE6 | 6.0/7.2 | 150 | 0.25/0.30 | 0.25/0.30 |
| VTE8 | 8.0/9.6 | 150 | 0.37/0.44 | 0.35/0.42 |
| VLT10 | 11.7/13.5 | 150 | 0.37/0.44 | 0.37/0.44 |
| VLT15 | 17/20.5 | 150 | 0.55/0.65 | 0.55/0.65 |
| VLT25 | 25.8/30.7 | 150 | 0.75/0.90 | 0.75/0.90 |
| VLT40 | 42/50.4 | 150 | 1.5/1.8 | |
| VTA60 | 55/66 | 150 | 1.5/1.8 | |
| VTA80 | 77/92 | 150 | 2.2/2.6 | |
| VTA100 | 98/118 | 150 | 3.0/3.4 | |
| VTA140 | 128/153 | 150 | 4.0/4.8 | |
| VTB180 | 170/200 | 150 | 4.0/4.8 | |
| VTB250 | 250/300 | 150 | 5.5/6.5 | |
| VTB340 | 350/410 | 150 | 11.0/13.0 | |
| VFT25 | 25/30 | 150 | 0.75/0.90 | 1.00/1.10 |
| VFT40 | 40/48 | 150 | 1.10/1.30 | 1.30/1.50 |
| VFT60 | 60/72 | 150 | 1.50/1.80 | |
| VFT80 | 80/96 | 150 | 2.20/2.60 | |
| VFT100 | 100/120 | 150 | 3.00/3.60 | |
| VFT140 | 140/168 | 150 | 4.00/4.80 | |
| VFT180 | 180/216 | 150 | 5.50.6.60 | |
| VFT250 | 250/300 | 150 | 7.50/9.00 | |
| VFT340 | 340/408 | 150 | 11.0/13.5 | |
| VFT500 | 500/600 | 150 | 15.0/18.5 | |
Rietschle Old Style Dry Rotary Vane Compressors
| Model | M3/Hr 50 / 60Hz |
Max Pressure mbar Abs 50 / 60 Hz |
Motor Size Kw 50 / 60 Hz |
|
| 3PH | 1PH | |||
| DTE3 | 3.5/4.2 | 1000 | 0.12/0.14 | 0.12/0.14 |
| DTE6 | 6.0/7.2 | 1000 | 0.25/0.30 | 0.25/0.30 |
| DTE8 | 8.0/9.6 | 1000 3 ph/600 1 ph | 0.37/0.44 | 0.25/0.30 |
| DLT10 | 11.3/13.0 | 700/600 | 0.37/0.44 | 0.37/0.44 |
| 11.3/13.0 | 1000 | 0.45/0.55 | 0.45/0.55 | |
| DLT15 | 17/20.5 | 700/600 | 0.55/0.6 | 0.55/0.60 |
| 17/20.5 | 1000 | 0.75/0.9 | 0.75/0.90 | |
| DLT25 | 26.0/31.2 | 700/800 | 0.75/0.90 | 0.75/0.90 |
| 26.0/31.2 | 1000 | 1.1/1.3 | 1.1/1.3 | |
| DLT40 | 43.5/52.2 | 700/600 | 1.5/1.8 | |
| 43.5/52.2 | 1000 | 1.85/2.2 | ||
| DTA50 | 52/62 | 900/600 | 2.2/2.6 | |
| 52/62 | 1500 | 3.0/3.6 | ||
| DTA60 | 58/70 | 700/500 | 2.2/2.6 | |
| 58/70 | 1500 | 3.0/3.6 | ||
| DTA80 | 73/88 | 900/700 | 3.0/3.6 | |
| 73/88 | 1500 | 4.0/4.8 | ||
| DTA100 | 97/116 | 1000/800 | 4.0/4.8 | |
| 97/116 | 1500 | 5.5/6.5 | ||
| DTA140 | 126/151 | 1200/900 | 5.5/6.5 | |
| 126/151 | 1500 | 7.5/9.0 | ||
| DTB180 | 175/210 | 800/700 | 5.5/6.5 | |
| 175/210 | 1400/1300 | 7.5/9.0 | ||
| 175/210 | 2000 | 11.0/13.0 | ||
| DTB250 | 250/300 | 850/800 | 7.5/9.5 | |
| 250/300 | 1600/1500 | 11.0/13.0 | ||
| 250/300 | 2000 | 15.0/18.0 | ||
| DTB340 | 350/420 | 1000 | 15.0/18.0 | |
| 350/420 | 1600/1500 | 18.5/22.0 | ||
| 350/420 | 1800 | 22.0/26.0 | ||
| DFT25 | 25/30 | 700/600 | 0.75/0.90 | 1.00/1.10 |
| 1300/1200 | 1.10/1.30 | 1.30/1.50 | ||
| 1500/0.00 | 1.50/1.80 | |||
| DFT40 | 40/48 | 550/600 | 1.10/1.30 | 1.30/1.50 |
| 1050/1000 | 1.50/1.80 | |||
| 1500/1200 | 2.20/2.60 | |||
| DFT60 | 60/72 | 550/0.00 | 1.50/0.00 | |
| 1100/700 | 2.20/2.60 | |||
| 1500/1200 | 3.00/3.60 | |||
| DFT80 | 80/96 | 500/0.00 | 2.20/0.00 | |
| 900/800 | 3.00/3.60 | |||
| 1500/1200 | 4.00/4.80 | |||
| DFT100 | 100/120 | 600/500 | 3.00/3.60 | |
| 1000/900 | 4.00/4.80 | |||
| 1500/1200 | 5.50/6.60 | |||
| DFT140 | 140/168 | 750/600 | 5.50/6.50 | |
| 1500/1200 | 7.50/9.00 | |||
| DFT180 | 180/216 | 800/700 | 7.50/9.00 | |
| 1500/1200 | 11.0/13.5 | |||
| DFT250 | 250/300 | 600/0.00 | 7.50/0.00 | |
| 1050/900 | 11.0/13.5 | |||
| 1500/1200 | 15.0/18.5 | |||
| DFT340 | 340/408 | 500/500 | 11.0/13.5 | |
| 1300/1000 | 15.0/18.5 | |||
| DFT500 | 500/600 | 700/600 | 18.5/22.0 | |
| 1300/1000 | 22.0/26.5 | |||
Elmo Rietschle New Dry Rotary Vane Pressure and Vacuum Pumps
| Model | M3/Hr 50 / 60Hz |
Max Vacuum mbar Abs 50 / 60 Hz |
Max Pressure mbar Abs 50 / 60 Hz |
Motor Size Kw 50 / 60 Hz |
| 3PH | ||||
| KLT15 | 16.7/20.0 | 600 | 600 | 0.75/0.90 |
| KLT25 | 26/31 | 600 | 600 | 1.1/1.3 |
| KLT40 | 42/50.4 | 600 | 600 | 1.85/2.2 |
| KTA50/1 | V=48.5 P=48 (50Hz) | 600 | 600 | 2.2/2.6 |
| V=57.2 P=56.6 (60Hz | 600 | 700 | 3.0/3.6 | |
| KTA50/2 | V=38.0 P=51.0 (50Hz) | 600 | 600 | 2.2/2.6 |
| V=44.8 P=60.2 (60Hz) | 600 | 700 | 3.0/3.6 | |
| KTA60/1 | V=54.3 P= 54.0 (50Hz) | 600 | 600 | 2.2/2.6 |
| V=64.1 P = 63.7 (60Hz) | 600 | 700 | 3.0/3.6 | |
| KTA60/2 | V=40 P=57.6 (50Hz) | 600 | 600 | 2.2/2.6 |
| V=47.2 P=67.9 (60Hz | 600 | 700 | 3.0/3.6 | |
| KTA60/3 | V=59.5 P=45 (50Hz) | 600 | 600 | 2.2/2.6 |
| V=70.2 P=53.1 (60Hz) | 600 | 700 | 3.0/3.6 | |
| KTA80/1 | V=70 P=68.5 (50Hz) | 600 | 600 | 3.0/3.6 |
| V=82.6 P=80.8 (60Hz) | 600 | 700 | 4.0/4.8 | |
| KTA80/2 | V=50.5 P=73.0 (50Hz) | 600 | 600 | 3.0/3.6 |
| V=60 P=86.1 (60Hz) | 600 | 700 | 4.0/4.8 | |
| KTA80/3 | V=74.5 P=57.0 (50Hz) | 600 | 600 | 3.0/3.6 |
| V=87.9 P= 67.3 (60Hz) | 600 | 700 | 4.0/4.8 | |
| KTA100/1 | V=92.1 P=90.0 (50Hz) | 600 | 600 | 4.0/4.8 |
| V=108.7 P=106.2 (60Hz) | 600 | 700 | 5.5/6.5 | |
| KTA100/2 | V=67.5 P=94.2 (50Hz) | 600 | 600 | 4.0 4.8 |
| V=79.6 P=111.2 (60Hz) | 600 | 700 | 5.5/6.5 | |
| KTA100/3 | V=100.1 P=75.0 (50Hz) | 600 | 600 | 4.0/4.8 |
| V=118.2 P=111.2 (60Hz) | 600 | 700 | 5.5/6.5 | |
| KTA140/1 | V=108 P=108 (50Hz) | 600 | 600 | 5.5/6.5 |
| V=127.4 P=127.4 (60Hz) | 600 | 700 | 7.5/9.0 | |
| KTA140/2 | V=81.5 P=115.0 (50Hz) | 600 | 600 | 5.5/6.5 |
| V=96.2 P=135.7 (60Hz) | 600 | 700 | 7.5/9.2 | |
| KTA140/3 | V=118 P=95 (50Hz) | 600 | 600 | 5.5/6.5 |
| V=139.2 P=112.1 (60Hz) | 600 | 700 | 7.5/9.2 |
Gardner Denver and Elmo Rietschle New Claw Units
| Model | M3/Hr 50 / 60Hz |
Max Vacuum mbar Abs 50 / 60 Hz |
Motor Size Kw 50 / 60 Hz |
| 3PH | |||
| C-VLR60 | 60/72 | 100 | 1.1/1.3 |
| C-VLR100 | 100/120 | 150 | 2.2/2.6 |
| C-VLR150 | 150/180 | 100 | 3.0/3.6 |
| C-VLR250 | 235/282 | 200 | 4.0/4.8 |
| C-VLR251 | 211/255 | 200 | 4.0/4.8 |
| C-VLR301 | 290/350 | 150 | 5.5/6.5 |
| C-VLR401 | 400/480 | 200 | 7.5/9.0 |
| C-VLR501 | 500/600 | 200 | 11.0/12.6 |
| C-VLR1000 | 950/1140 | 200 | 18.5/22.0 |
Gardner Denver and Elmo Rietschle New Claw and Old Claw Compressors
| Model | M3/Hr 50 / 60Hz |
Max Pressure mbar Abs 50 / 60 Hz |
Motor Size Kw 50 / 60 Hz |
| 3PH | |||
| C-DLR60 | 56/68 | 1800/2000 | 3.0/3.6 |
| C-DLR100 | 100/120 | 800 | 3.00 |
| 1400 | 4.0/4.8 | ||
| 2000/2200 | 5.5/6.5 | ||
| C-DLR150 | 142/170 | 1200/1000 | 5.5/6.5 |
| 2000/1800 | 7.5/9.0 | ||
| C-DLR250 | 235/282 | 1000/800 | 7.5/9.0 |
| 2000/1800 | 11.0/13.0 | ||
| 0/2200 | 0.0/18.0 | ||
| C-DLR300 | 300/360 | 600/0.0 | 7.5/9.0 |
| 1400/1200 | 11.0/13.0 | ||
| 2200/2200 | 15.0/18.0 | ||
| C-DLR301 | 270/320 | 2000/0.0 | 15.0/0.0 |
| 0.00/1800 | 0.00/18.0 | ||
| C-DLR400 | 385/462 | 800/600 | 11.0/13.0 |
| 1400/1200 | 15.0/18.0 | ||
| 1800/1600 | 18.5/22.0 | ||
| 2000/2000 | 22.0/26.0 | ||
| C-DLR401 | 400 | 1800 | 22 |
| C-DLR500 | 500/600 | 800/800 | 15.0/18.0 |
| 1200/1200 | 18.5/22.0 | ||
| 1600/1600 | 22.0/26.0 | ||
| 2000/2000 | 30.0/36.0 | ||
| C-DLR501 | 500/600 | 2000/2000 | 30.0/36.0 |
Gardner Denver and Elmo Rietschle Old Claw Vacuum Pumps
| Model | M3/Hr 50 / 60Hz |
Max Vacuum mbar Abs 50 / 60 Hz |
Motor Size Kw 50 / 60 Hz |
| 3PH | |||
| C-VLR100 | 100/120 | 150 | 1.1/1.3 |
| C-VLR150 | 150/180 | 100 | 2.2/2.6 |
| C-VLR250 | 235/282 | 200 | 3.0/3.6 |
| C-VLR251 | 211/255 | 200 | 4.0/4.8 |
| C-VLR300 | 300/360 | 200 | 4.0/4.8 |
| C-VLR400 | 385/462 | 250 | 5.5/6.5 |
| C-VLR500 | 500/600 | 250 | 7.5/9.0 |
| C-VLR1000 | 950/1140 | 200 | 9.0/11.0 |
| 18.5/22.0 |
Elmo Rietschle Oil Lubricated Rotary Vane Vacuum Pumps
VGA Series
Flow : 4.0 – 18 m3/h
Max. Vacuum : 2 mbar Abs
V-VCE Series
Flow : 15 – 120 m3/h
Max. Vacuum : 10 mbar Abs
V-VCA Series
Flow : 15 – 120 m3/h
Max. Vacuum : 0.5 mbar ABs
V-VC Series
Flow : 50 – 1535 m3/h
Max. Vacuum : 0.1 mbar Abs
VCB Series
Flow : 20 – 26.5 m3/h
Max. Vacuum : 2 mbar Abs
V-VCEH Series
Flow : 100 – 300 m3/h
Max. Vacuum : 10 mbar Abs
V-VCAH Series
Flow : 100 – 300 m3/h
Max. Vacuum : 0.5 mbar ABs
| Model | M3/Hr 50 / 60Hz |
Max Vacuum mbar Abs 50 / 60 Hz |
Motor Size Kw 50 / 60 Hz |
|
| 3PH | 1PH | |||
| VGC/A4 | 4.0/4.8 | 2.0/2.0 | 0.20/0.24 | |
| VGC/A6 | 6.0/7.2 | 2.0/2.0 | 0.32/0.38 | |
| VGC/A10 | 10.0/12.0 | 2.0/2.0 | 0.37/0.44 | |
| VGC/A15 | 15.0/18.0 | 2.0/2.0 | 0.55/0.65 | |
| VCB20 | 20/24 | 2.0/2.0 | 0.75/0.90 | |
| VCB25 | 22.5/26.5 | 2.0/2.0 | 0.75/0.90 | 1.10/0.00 |
| VCE15 | 15.0/18.0 | 10.0/10.0 | 0.55/0.65 | 0.75/1.30 |
| VCE25 | 25.0/30.0 | 10.0/10.0 | 0.75/0.90 | 1.00/1.30 |
| VCE40 | 40.0/48.0 | 10.0/10.0 | 1.10/1.30 | 1.50/1.80 |
| VCE60 | 60.0/72.0 | 10.0/10.0 | 1.50/1.80 | 2.20/0.00 |
| VCE100 | 100/120 | 10.0/10.0 | 2.20/3.00 | |
| VCA15 | 15.0/18.0 | 0.5/0.5 | 0.55/0.65 | 0.75/1.30 |
| VCA25 | 25.0/30.0 | 0.5/0.5 | 0.75/0.80 | 1.00/1.30 |
| VCA40 | 40.0/48.0 | 0.5/0.5 | 1.10/1.30 | 1.50/1.80 |
| VCA60 | 60.0/72.0 | 0.5/0.5 | 1.50/1.80 | 2.20/0.00 |
| VCA100 | 100/120 | 0.5/0.5 | 2.20/3.00 | |
| VCEH100 | 100/120 | 10.0/10.0 | 2.20/3.00 | |
| VCEH160 | 160/192 | 10.00/10.00 | 4.00/5.00 | |
| VCEH250 | 250/300 | 10.0/10.0 | 5.50/7.50 | |
| VCAH100 | 100/120 | 0.5/0.5 | 2.20/3.00 | |
| VCAH160 | 160/192 | 0.5/0.5 | 4.00/5.50 | |
| VCAH250 | 250/300 | 0.5/0.5 | 5.50/7.50 | |
| VC50 | 50/60 | 0.1/0.1 | 1.25/1.50 | |
| VC75 | 70/84 | 0.1/0.1 | 1.85/2.20 | |
| VC100 | 110/132 | 0.1/0.1 | 2.20/2.60 | |
| VC150 | 150/180 | 0.1/0.1 | 3.00/3.60 | |
| VC200/202 | 200/240 | 0.1/0.1 | 4.00/5.50 | |
| VC300/303 | 300/360 | 0.1/0.1 | 5.50/7.50 | |
| VC400 | 400/480 | 0.1/0.1 | 9.00/11.00 | |
| VC500 | 550/660 | 0.1/0.1 | 11.00.13.00 | |
| VC700 | 700/840 | 0.1/0.1 | 15.00/18.00 | |
| VC900 | 830/995 | 0.1/0.1 | 18.50/22.00 | |
| VC1100 | 1100/1320 | 0.1/0.1 | 22.0026.00 | |
| VC1300 | 1280/1535 | 0.1/0.1 | 30.00/36.00 | |
